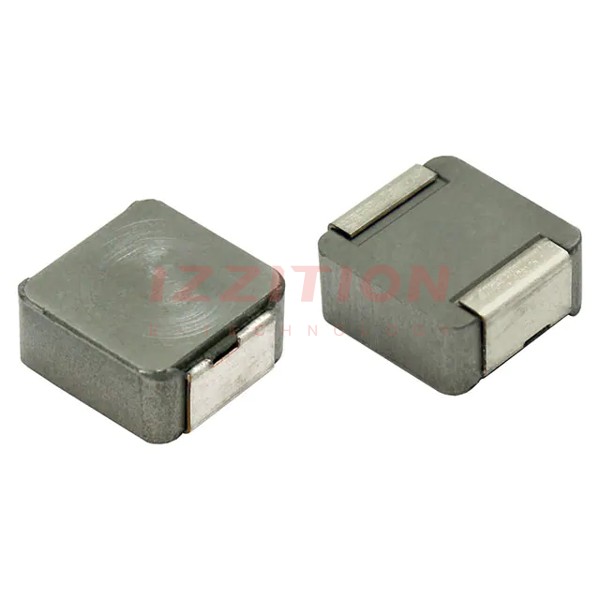

| Part Number | IHLP3232DZER1R0M8A | IHLP3232DZER100M8A | IHLP3232DZER150M8A | IHLP3232DZER1R0M5A |
|---|---|---|---|---|
| Manufacturer | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale |
| Product Status | Active | Active | Active | Active |
| Type | - | - | - | Molded |
| Material - Core | Metal Composite | Metal Composite | Metal Composite | - |
| Inductance | 1 µH | 10 µH | 15 µH | 1 µH |
| Tolerance | ±20% | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 19 A | 5.1 A | 4.8 A | 19 A |
| Current - Saturation (Isat) | 16.2A | 5.2A | 3.6A | 16.2A |
| Shielding | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 4.9mOhm Max | 53.5mOhm Max | 66.34mOhm Max | 4.9mOhm Max |
| Q @ Freq | - | - | - | - |
| Frequency - Self Resonant | 45MHz | 13MHz | 10MHz | 45MHz |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Operating Temperature | -55°C ~ 180°C | -55°C ~ 180°C | -55°C ~ 180°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - |
| Size / Dimension | 0.340" L x 0.322" W (8.64mm x 8.18mm) | 0.340" L x 0.322" W (8.64mm x 8.18mm) | 0.340" L x 0.322" W (8.64mm x 8.18mm) | 0.322" L x 0.322" W (8.18mm x 8.18mm) |
| Height - Seated (Max) | 0.157" (4.00mm) | 0.157" (4.00mm) | 0.157" (4.00mm) | 0.157" (4.00mm) |
