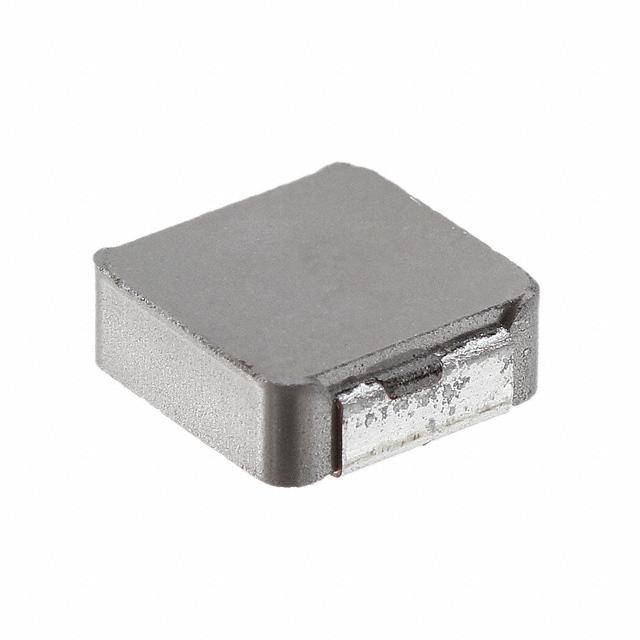

| Part Number | IHLP3232CZERR68M11 | IHLP3232DZERR68M11 |
|---|---|---|
| Manufacturer | Vishay Dale | Vishay Dale |
| Product Status | Active | Active |
| Type | Molded | Molded |
| Material - Core | - | - |
| Inductance | 680 nH | 680 nH |
| Tolerance | ±20% | ±20% |
| Current Rating (Amps) | 20 A | 22.2 A |
| Current - Saturation (Isat) | 15.2A | 14.5A |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 3.99mOhm Max | 3.22mOhm Max |
| Q @ Freq | - | - |
| Frequency - Self Resonant | 59MHz | 62MHz |
| Ratings | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.340" L x 0.322" W (8.64mm x 8.18mm) | 0.340" L x 0.322" W (8.64mm x 8.18mm) |
| Height - Seated (Max) | 0.118" (3.00mm) | 0.157" (4.00mm) |
