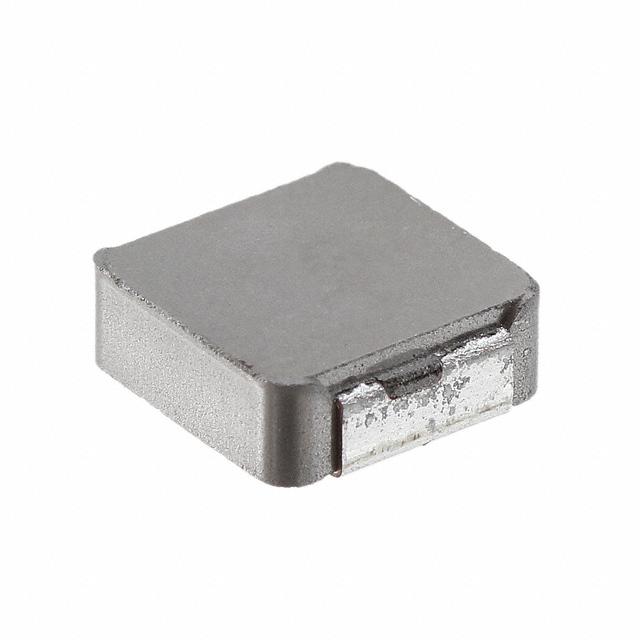

| Part Number | IHLP3232CZERR22M01 | IHLP3232DZERR22M01 | IHLP3232CZERR22M11 |
|---|---|---|---|
| Manufacturer | Vishay Dale | Vishay Dale | Vishay Dale |
| Product Status | Active | Active | Active |
| Type | Molded | Molded | Molded |
| Material - Core | - | - | - |
| Inductance | 220 nH | 220 nH | 220 nH |
| Tolerance | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 32 A | 30.7 A | 36 A |
| Current - Saturation (Isat) | 43A | 34A | 24A |
| Shielding | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 1.71mOhm Max | 1.68mOhm Max | 1.62mOhm Max |
| Q @ Freq | - | - | - |
| Frequency - Self Resonant | 104MHz | 126MHz | 151MHz |
| Ratings | - | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - |
| Size / Dimension | 0.340" L x 0.322" W (8.64mm x 8.18mm) | 0.340" L x 0.322" W (8.64mm x 8.18mm) | 0.340" L x 0.322" W (8.64mm x 8.18mm) |
| Height - Seated (Max) | 0.118" (3.00mm) | 0.157" (4.00mm) | 0.118" (3.00mm) |
