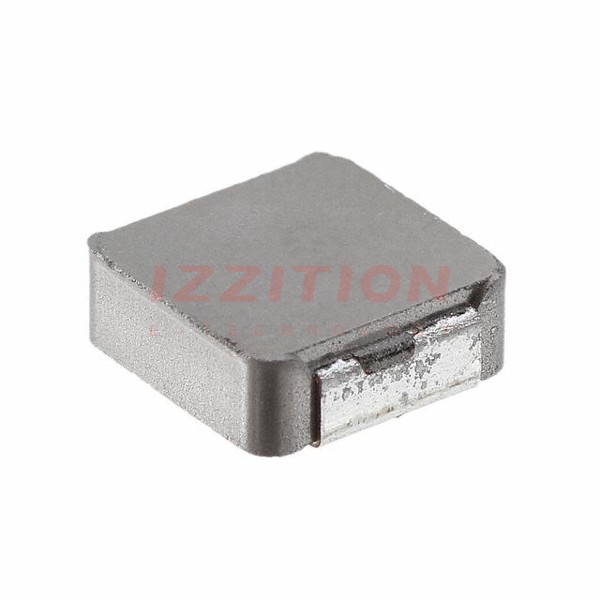

| Part Number | IHLP3232CZER6R8M01 | IHLP3232CZER6R8M11 | IHLP3232DZER6R8M01 |
|---|---|---|---|
| Manufacturer | Vishay Dale | Vishay Dale | Vishay Dale |
| Product Status | Active | Active | Active |
| Type | Molded | Molded | Molded |
| Material - Core | - | - | - |
| Inductance | 6.8 µH | 6.8 µH | 6.8 µH |
| Tolerance | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 5.3 A | 6.5 A | 5.7 A |
| Current - Saturation (Isat) | 9.5A | 5A | 15.2A |
| Shielding | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 49.3mOhm Max | 37.8mOhm Max | 47.7mOhm Max |
| Q @ Freq | - | - | - |
| Frequency - Self Resonant | 19MHz | 17MHz | 15MHz |
| Ratings | - | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - |
| Size / Dimension | 0.340" L x 0.322" W (8.64mm x 8.18mm) | 0.340" L x 0.322" W (8.64mm x 8.18mm) | 0.340" L x 0.322" W (8.64mm x 8.18mm) |
| Height - Seated (Max) | 0.118" (3.00mm) | 0.118" (3.00mm) | 0.157" (4.00mm) |
