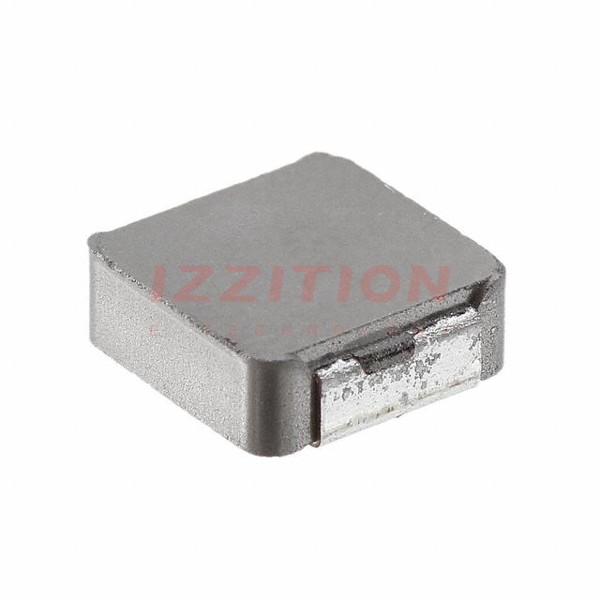

| Part Number | IHLP3232CZER1R0M11 | IHLP3232DZER1R0M11 | IHLP3232CZER1R5M11 | IHLP3232CZER100M11 | IHLP3232CZER150M11 | IHLP3232CZER1R0M01 |
|---|---|---|---|---|---|---|
| Manufacturer | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale |
| Product Status | Active | Active | Active | Active | Active | Active |
| Type | Molded | Molded | Molded | Molded | Molded | Molded |
| Material - Core | - | - | - | - | - | - |
| Inductance | 1 µH | 1 µH | 1.5 µH | 10 µH | 15 µH | 1 µH |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 16 A | 18.2 A | 12.5 A | 5.3 A | 4.3 A | 13.7 A |
| Current - Saturation (Isat) | 14.8A | 12A | 11.3A | 3.8A | 3.8A | 29A |
| Shielding | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 6.49mOhm Max | 4.63mOhm Max | 9.94mOhm Max | 55.1mOhm Max | 85.3mOhm Max | 8.35mOhm Max |
| Q @ Freq | - | - | - | - | - | - |
| Frequency - Self Resonant | 51MHz | 49MHz | 35MHz | 12MHz | 11MHz | 51MHz |
| Ratings | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - | - | - |
| Size / Dimension | 0.340" L x 0.322" W (8.64mm x 8.18mm) | 0.340" L x 0.322" W (8.64mm x 8.18mm) | 0.340" L x 0.322" W (8.64mm x 8.18mm) | 0.340" L x 0.322" W (8.64mm x 8.18mm) | 0.340" L x 0.322" W (8.64mm x 8.18mm) | 0.340" L x 0.322" W (8.64mm x 8.18mm) |
| Height - Seated (Max) | 0.118" (3.00mm) | 0.157" (4.00mm) | 0.118" (3.00mm) | 0.118" (3.00mm) | 0.118" (3.00mm) | 0.118" (3.00mm) |
