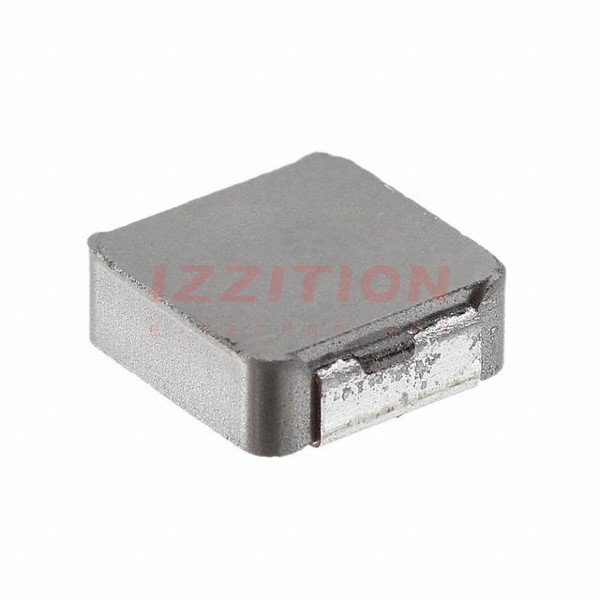

| Part Number | IHLP3232CZER1R0M01 | IHLP3232DZER1R0M01 | IHLP3232CZER1R5M01 | IHLP3232CZER1R0M11 | IHLP3232CZER100M01 |
|---|---|---|---|---|---|
| Manufacturer | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale |
| Product Status | Active | Active | Active | Active | Active |
| Type | Molded | Molded | Molded | Molded | Molded |
| Material - Core | - | - | - | - | - |
| Inductance | 1 µH | 1 µH | 1.5 µH | 1 µH | 10 µH |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 13.7 A | 18 A | 11 A | 16 A | 4.7 A |
| Current - Saturation (Isat) | 29A | 24A | 24A | 14.8A | 8.2A |
| Shielding | Shielded | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 8.35mOhm Max | 5.78mOhm Max | 13.3mOhm Max | 6.49mOhm Max | 71.2mOhm Max |
| Q @ Freq | - | - | - | - | - |
| Frequency - Self Resonant | 51MHz | 42MHz | 42MHz | 51MHz | 15MHz |
| Ratings | - | - | - | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - | - |
| Size / Dimension | 0.340" L x 0.322" W (8.64mm x 8.18mm) | 0.340" L x 0.322" W (8.64mm x 8.18mm) | 0.340" L x 0.322" W (8.64mm x 8.18mm) | 0.340" L x 0.322" W (8.64mm x 8.18mm) | 0.340" L x 0.322" W (8.64mm x 8.18mm) |
| Height - Seated (Max) | 0.118" (3.00mm) | 0.157" (4.00mm) | 0.118" (3.00mm) | 0.118" (3.00mm) | 0.118" (3.00mm) |
