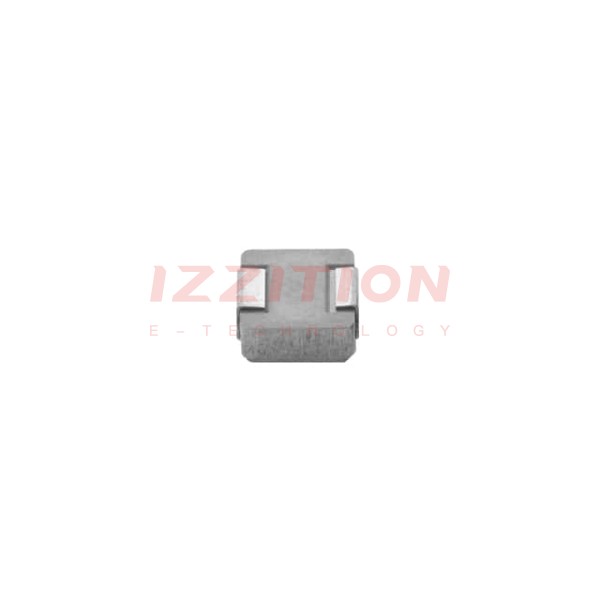

| Part Number | IHLP2525CZET4R7M11 | IHLP2525CZER4R7M11 | IHLP2525CZET4R7M01 |
|---|---|---|---|
| Manufacturer | Vishay Dale | Vishay Dale | Vishay Dale |
| Product Status | Obsolete | Active | Obsolete |
| Type | Molded | Molded | Molded |
| Material - Core | - | Iron Powder | - |
| Inductance | 4.7 µH | 4.7 µH | 4.7 µH |
| Tolerance | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 6 A | 6 A | 5.5 A |
| Current - Saturation (Isat) | 4A | 4A | 10A |
| Shielding | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 33.4mOhm Max | 33.4mOhm Max | 40mOhm Max |
| Q @ Freq | - | - | - |
| Frequency - Self Resonant | - | - | 25MHz |
| Ratings | - | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - |
| Size / Dimension | 0.270" L x 0.255" W (6.86mm x 6.47mm) | 0.270" L x 0.255" W (6.86mm x 6.47mm) | 0.270" L x 0.255" W (6.86mm x 6.47mm) |
| Height - Seated (Max) | 0.118" (3.00mm) | 0.118" (3.00mm) | 0.118" (3.00mm) |
