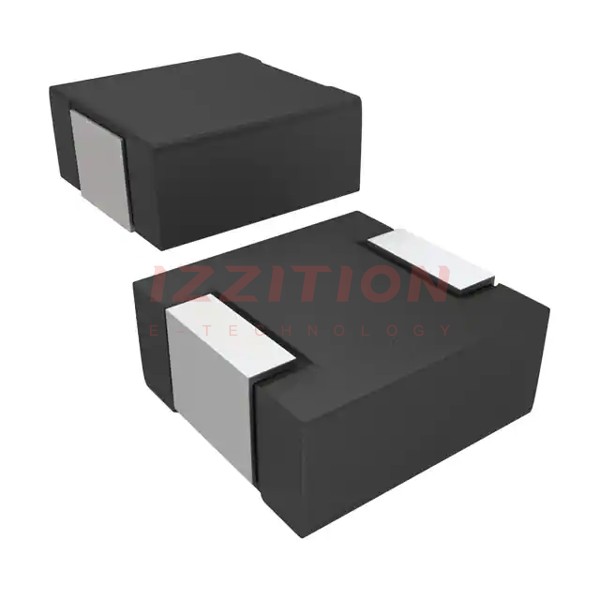

| Part Number | IHLP2525CZER3R3M51 | IHLP2525CZER3R3MA1 | IHLP2525CZER3R3M5A | IHLP2525CZER3R3M01 | IHLP2525CZER3R3M11 |
|---|---|---|---|---|---|
| Manufacturer | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale |
| Product Status | Active | Active | Active | Active | Active |
| Type | Molded | - | Molded | Molded | Molded |
| Material - Core | - | Metal Composite | - | - | Iron Powder |
| Inductance | 3.3 µH | 3.3 µH | 3.3 µH | 3.3 µH | 3.3 µH |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 6.8 A | 6 A | 6.8 A | 6 A | 7 A |
| Current - Saturation (Isat) | 8.3A | 13.5A | 8.3A | 13.5A | 6.5A |
| Shielding | Shielded | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 28.4mOhm Max | 30mOhm Max | 28.4mOhm Max | 30mOhm Max | 26mOhm Max |
| Q @ Freq | - | - | - | - | - |
| Frequency - Self Resonant | 28.6MHz | 30MHz | 28.6MHz | - | - |
| Ratings | - | AEC-Q200 | AEC-Q200 | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - | - |
| Size / Dimension | 0.270" L x 0.255" W (6.86mm x 6.47mm) | 0.270" L x 0.255" W (6.86mm x 6.47mm) | 0.270" L x 0.255" W (6.86mm x 6.47mm) | 0.270" L x 0.255" W (6.86mm x 6.47mm) | 0.270" L x 0.255" W (6.86mm x 6.47mm) |
| Height - Seated (Max) | 0.118" (3.00mm) | 0.118" (3.00mm) | 0.118" (3.00mm) | 0.118" (3.00mm) | 0.118" (3.00mm) |
