Please send RFQ , we will respond immediately.

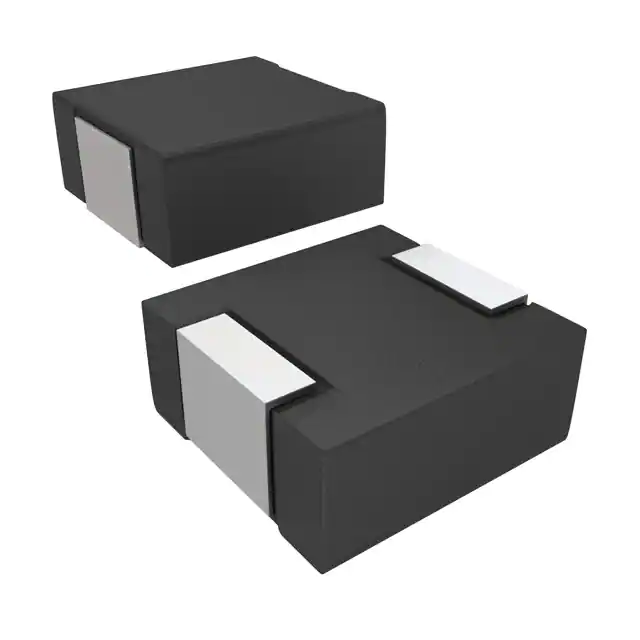

| Part Number | IHLP2525CZER2R2M51 | IHLP2525CZER2R2MA1 | IHLP2525CZER2R2M5A | IHLP2525CZER2R2M01 | IHLP2525CZER2R2M11 |
|---|---|---|---|---|---|
| Manufacturer | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale |
| Product Status | Active | Active | Active | Active | Active |
| Type | Molded | - | Molded | Molded | Molded |
| Material - Core | - | Metal Composite | - | - | - |
| Inductance | 2.2 µH | 2.2 µH | 2.2 µH | 2.2 µH | 2.2 µH |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 8.1 A | 8 A | 8.1 A | 8 A | 9 A |
| Current - Saturation (Isat) | 10.8A | 14A | 10.8A | 14A | 7A |
| Shielding | Shielded | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 18.3mOhm Max | 20mOhm Max | 18.3mOhm Max | 20mOhm Max | 16.5mOhm Max |
| Q @ Freq | - | - | - | - | - |
| Frequency - Self Resonant | 31.2MHz | 38MHz | 31.2MHz | - | - |
| Ratings | - | AEC-Q200 | AEC-Q200 | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - | - |
| Size / Dimension | 0.270" L x 0.255" W (6.86mm x 6.47mm) | 0.270" L x 0.255" W (6.86mm x 6.47mm) | 0.270" L x 0.255" W (6.86mm x 6.47mm) | 0.270" L x 0.255" W (6.86mm x 6.47mm) | 0.270" L x 0.255" W (6.86mm x 6.47mm) |
| Height - Seated (Max) | 0.118" (3.00mm) | 0.118" (3.00mm) | 0.118" (3.00mm) | 0.118" (3.00mm) | 0.118" (3.00mm) |
