Please send RFQ , we will respond immediately.

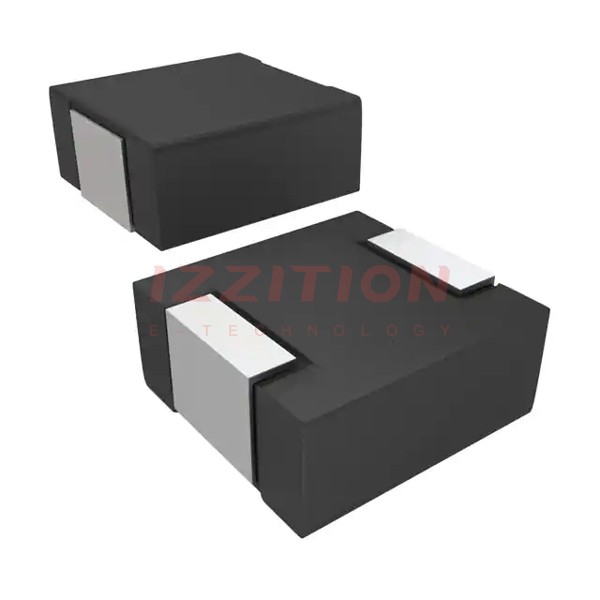

| Part Number | IHLP2525CZER1R0M51 | IHLP2525CZER1R0M5A | IHLP2525CZER1R0MA1 | IHLP2525CZER1R5M51 | IHLP2525CZER100M51 | IHLP2525CZER150M51 | IHLP2525CZER1R0M01 | IHLP2525CZER1R0M11 |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active |
| Type | Molded | Molded | Molded | - | Molded | Molded | Molded | Molded |
| Material - Core | - | - | - | Metal Composite | - | - | - | - |
| Inductance | 1 µH | 1 µH | 1 µH | 1.5 µH | 10 µH | 15 µH | 1 µH | 1 µH |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 12 A | 12 A | 11 A | 10.6 A | 4 A | 2.9 A | 11 A | 12.5 A |
| Current - Saturation (Isat) | 13A | 13A | 22A | 11.6A | 2.9A | 2.8A | 22A | 9.5A |
| Shielding | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 8.45mOhm Max | 8.45mOhm Max | 10mOhm Max | 13.2mOhm Max | 76.9mOhm Max | 127mOhm Max | 10mOhm Max | 8mOhm Max |
| Q @ Freq | - | - | - | - | - | - | - | - |
| Frequency - Self Resonant | 53.2MHz | 53.2MHz | 55MHz | 45.9MHz | 14MHz | 10.4MHz | - | - |
| Ratings | - | AEC-Q200 | AEC-Q200 | - | - | - | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 155°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - | - | - | - | - |
| Size / Dimension | 0.270" L x 0.255" W (6.86mm x 6.47mm) | 0.270" L x 0.255" W (6.86mm x 6.47mm) | 0.270" L x 0.255" W (6.86mm x 6.47mm) | 0.270" L x 0.255" W (6.86mm x 6.47mm) | 0.270" L x 0.255" W (6.86mm x 6.47mm) | 0.270" L x 0.255" W (6.86mm x 6.47mm) | 0.270" L x 0.255" W (6.86mm x 6.47mm) | 0.270" L x 0.255" W (6.86mm x 6.47mm) |
| Height - Seated (Max) | 0.118" (3.00mm) | 0.118" (3.00mm) | 0.118" (3.00mm) | 0.118" (3.00mm) | 0.118" (3.00mm) | 0.118" (3.00mm) | 0.118" (3.00mm) | 0.118" (3.00mm) |
