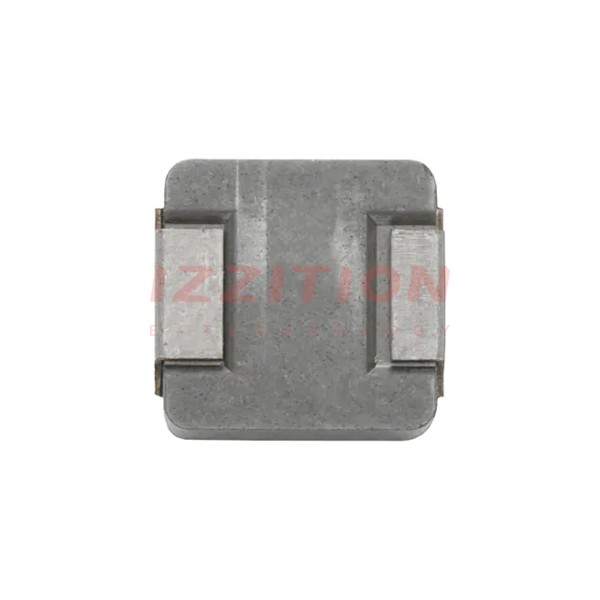

| Part Number | IHLP2525CZER150M01 | IHLP2525CZER1R0M01 | IHLP2525CZER150M51 | IHLP2525CZER100M01 |
|---|---|---|---|---|
| Manufacturer | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale |
| Product Status | Active | Active | Active | Active |
| Type | - | Molded | Molded | Molded |
| Material - Core | Metal Composite | - | - | - |
| Inductance | 15 µH | 1 µH | 15 µH | 10 µH |
| Tolerance | ±20% | ±20% | ±20% | ±20% |
| Current Rating (Amps) | - | 11 A | 2.9 A | 3 A |
| Current - Saturation (Isat) | - | 22A | 2.8A | 7A |
| Shielding | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | - | 10mOhm Max | 127mOhm Max | 105mOhm Max |
| Q @ Freq | - | - | - | - |
| Frequency - Self Resonant | - | - | 10.4MHz | - |
| Ratings | - | - | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - |
| Size / Dimension | 0.270" L x 0.255" W (6.86mm x 6.47mm) | 0.270" L x 0.255" W (6.86mm x 6.47mm) | 0.270" L x 0.255" W (6.86mm x 6.47mm) | 0.270" L x 0.255" W (6.86mm x 6.47mm) |
| Height - Seated (Max) | 0.118" (3.00mm) | 0.118" (3.00mm) | 0.118" (3.00mm) | 0.118" (3.00mm) |
