Vishay Dale-IHLP2525CZER100M5A - Fixed Inductors Product Specifications and Latest Quotes

Part Number	IHLP2525CZER100M5A	IHLP2525CZER1R0M5A	IHLP2525CZER100M8A	IHLP2525CZER150M5A	IHLP2525CZER100M1A	IHLP2525CZER100M51
Manufacturer	Vishay Dale	Vishay Dale	Vishay Dale	Vishay Dale	Vishay Dale	Vishay Dale
Product Status	Active	Active	Active	Active	Active	Active
Type	Molded	Molded	Molded	Molded	-	Molded
Material - Core	-	-	-	-	Iron Powder	-
Inductance	10 µH	1 µH	10 µH	15 µH	10 µH	10 µH
Tolerance	±20%	±20%	±20%	±20%	±20%	±20%
Current Rating (Amps)	4 A	12 A	4 A	2.9 A	4 A	4 A
Current - Saturation (Isat)	2.9A	13A	2.9A	2.8A	3.5A	2.9A
Shielding	Shielded	Shielded	Shielded	Shielded	Shielded	Shielded
DC Resistance (DCR)	76.9mOhm Max	8.45mOhm Max	76.9mOhm Max	127mOhm Max	71.2mOhm Max	76.9mOhm Max
Q @ Freq	-	-	-	-	-	-
Frequency - Self Resonant	14MHz	53.2MHz	13.9MHz	10.4MHz	-	14MHz
Ratings	AEC-Q200	AEC-Q200	AEC-Q200	AEC-Q200	AEC-Q200	-
Operating Temperature	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 180°C	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C
Inductance Frequency - Test	100 kHz	100 kHz	100 kHz	100 kHz	100 kHz	100 kHz
Features	-	-	-	-	-	-
Mounting Type	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount
Package / Case	Nonstandard	Nonstandard	Nonstandard	Nonstandard	Nonstandard	Nonstandard
Supplier Device Package	-	-	-	-	-	-
Size / Dimension	0.270" L x 0.255" W (6.86mm x 6.47mm)	0.270" L x 0.255" W (6.86mm x 6.47mm)	0.270" L x 0.255" W (6.86mm x 6.47mm)	0.270" L x 0.255" W (6.86mm x 6.47mm)	0.270" L x 0.255" W (6.86mm x 6.47mm)	0.270" L x 0.255" W (6.86mm x 6.47mm)
Height - Seated (Max)	0.118" (3.00mm)	0.118" (3.00mm)	0.118" (3.00mm)	0.118" (3.00mm)	0.118" (3.00mm)	0.118" (3.00mm)

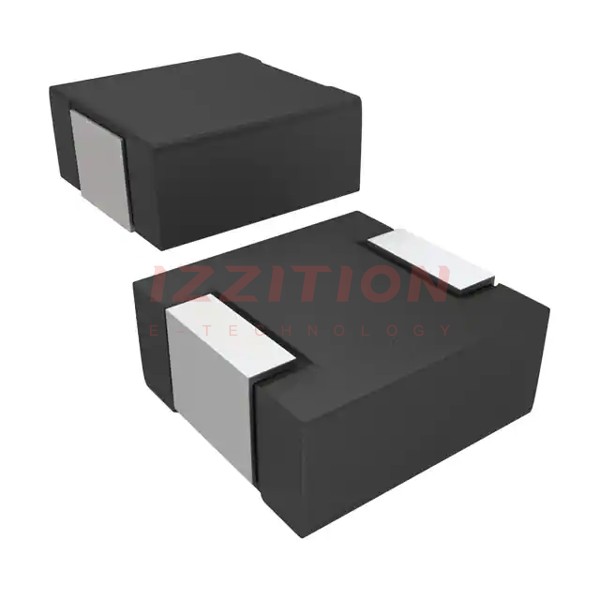

Vishay Dale IHLP2525CZER100M5A
