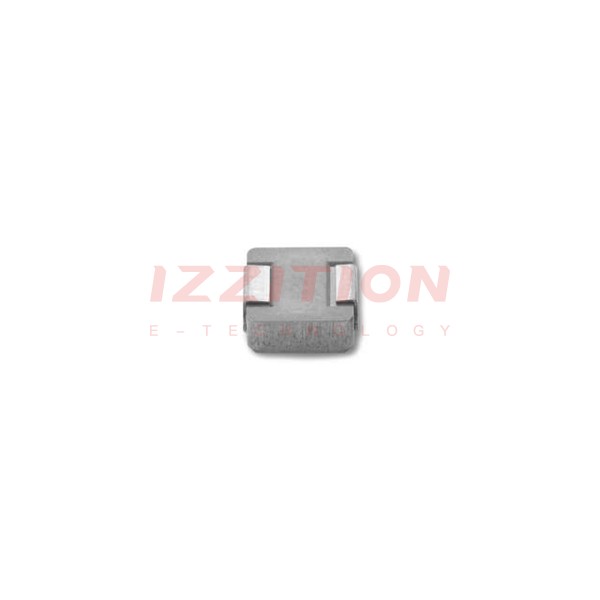

| Part Number | IHLP2020CZETR47M01 | IHLP2020CZETR47M11 | IHLP2020BZETR47M01 | IHLP2020CZERR47M01 |
|---|---|---|---|---|
| Manufacturer | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale |
| Product Status | Obsolete | Obsolete | Obsolete | Active |
| Type | Molded | Molded | Molded | Molded |
| Material - Core | - | - | - | - |
| Inductance | 470 nH | 470 nH | 470 nH | 470 nH |
| Tolerance | ±20% | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 12.2 A | 14 A | 11.5 A | 12.2 A |
| Current - Saturation (Isat) | 16A | 9A | 21A | 16A |
| Shielding | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 7.04mOhm Max | 6mOhm Max | 9.4mOhm Max | 7.04mOhm Max |
| Q @ Freq | - | - | - | - |
| Frequency - Self Resonant | 84MHz | 88MHz | 98MHz | - |
| Ratings | - | - | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - |
| Size / Dimension | 0.216" L x 0.204" W (5.49mm x 5.18mm) | 0.216" L x 0.204" W (5.49mm x 5.18mm) | 0.216" L x 0.204" W (5.49mm x 5.18mm) | 0.216" L x 0.204" W (5.49mm x 5.18mm) |
| Height - Seated (Max) | 0.118" (3.00mm) | 0.118" (3.00mm) | 0.079" (2.00mm) | 0.118" (3.00mm) |
