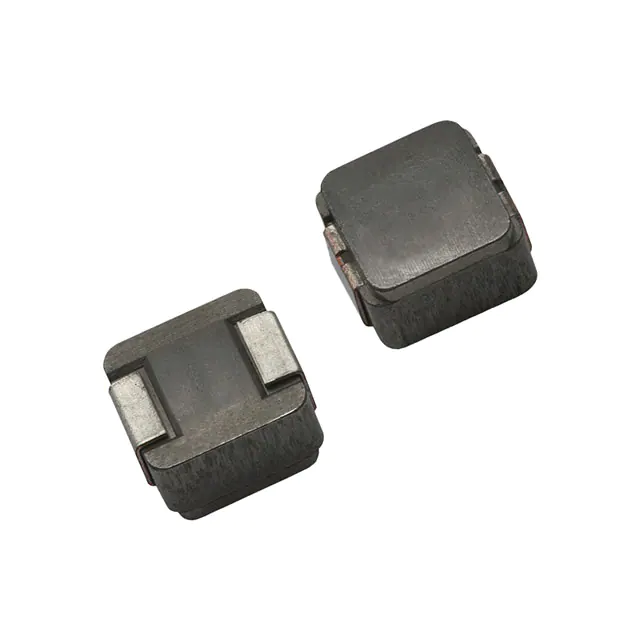

Vishay Dale IHLP2020CZER2R2MA1

Manufacturer No:
IHLP2020CZER2R2MA1
Manufacturer:
Vishay Dale
Package:
Tape & Reel (TR)
Datasheet:
IHLP2020CZER2R2MA1 Datasheet
ECAD Model:
-
Description:
IHLP-2020CZ-A1 2.2 20% ER E3
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Type:-
Material - Core:Metal Composite
Inductance:2.2 µH
Tolerance:±20%
Current Rating (Amps):5.8 A
Current - Saturation (Isat):10A
Shielding:Shielded
DC Resistance (DCR):29.2mOhm Max
Q @ Freq:-
Frequency - Self Resonant:39MHz
Ratings:AEC-Q200
Operating Temperature:-55°C ~ 125°C
Inductance Frequency - Test:100 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.216" L x 0.204" W (5.49mm x 5.18mm)
Height - Seated (Max):0.118" (3.00mm)
0 Remaining View Similar

In Stock

$1.38
535

Please send RFQ , we will respond immediately.

Similar Products

Part Number IHLP2020CZER2R2MA1 IHLP2020BZER2R2MA1   IHLP2020CZER2R2M01   IHLP2020CZER2R2M11   IHLP2020CZER2R2M51
Manufacturer Vishay Dale Vishay Dale Vishay Dale Vishay Dale Vishay Dale
Product Status Active Active Active Active Active
Type - - Molded Molded -
Material - Core Metal Composite Metal Composite - - Metal Composite
Inductance 2.2 µH 2.2 µH 2.2 µH 2.2 µH 2.2 µH
Tolerance ±20% ±20% ±20% ±20% ±20%
Current Rating (Amps) 5.8 A 4.2 A 5.8 A 6.75 A 6.6 A
Current - Saturation (Isat) 10A 12.5A 10A 5.5A 6.3A
Shielding Shielded Shielded Shielded Shielded Shielded
DC Resistance (DCR) 29.2mOhm Max 50.1mOhm Max 29.2mOhm Max 25mOhm Max 26mOhm Max
Q @ Freq - - - - -
Frequency - Self Resonant 39MHz 39MHz - 41MHz 39.8MHz
Ratings AEC-Q200 AEC-Q200 - - -
Operating Temperature -55°C ~ 125°C -55°C ~ 125°C -55°C ~ 125°C -55°C ~ 125°C -55°C ~ 155°C
Inductance Frequency - Test 100 kHz 100 kHz 100 kHz 100 kHz 100 kHz
Features - - - - -
Mounting Type Surface Mount Surface Mount Surface Mount Surface Mount Surface Mount
Package / Case Nonstandard Nonstandard Nonstandard Nonstandard Nonstandard
Supplier Device Package - - - - -
Size / Dimension 0.216" L x 0.204" W (5.49mm x 5.18mm) 0.216" L x 0.204" W (5.49mm x 5.18mm) 0.216" L x 0.204" W (5.49mm x 5.18mm) 0.216" L x 0.204" W (5.49mm x 5.18mm) 0.216" L x 0.204" W (5.49mm x 5.18mm)
Height - Seated (Max) 0.118" (3.00mm) 0.079" (2.00mm) 0.118" (3.00mm) 0.118" (3.00mm) 0.118" (3.00mm)
