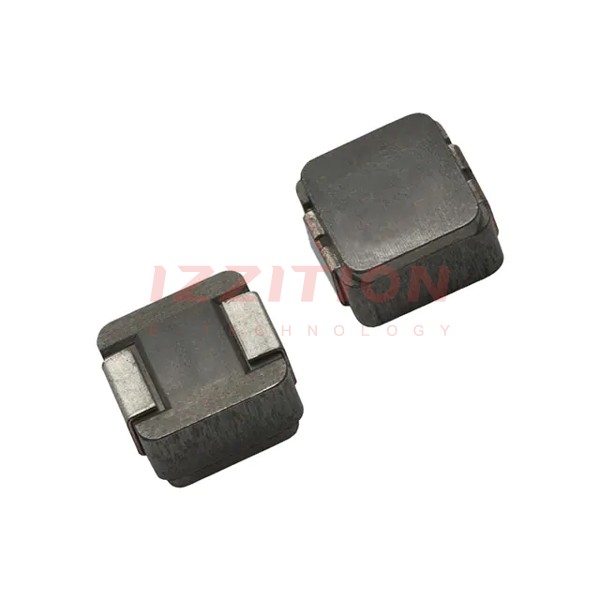

| Part Number | IHLP2020CZER1R5MA1 | IHLP2020CZER1R0MA1 | IHLP2020CZER1R5M01 | IHLP2020CZER1R5M11 | IHLP2020CZER1R5M51 |
|---|---|---|---|---|---|
| Manufacturer | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale |
| Product Status | Active | Active | Active | Active | Active |
| Type | - | - | Molded | Molded | - |
| Material - Core | Metal Composite | Metal Composite | - | - | Metal Composite |
| Inductance | 1.5 µH | 1 µH | 1.5 µH | 1.5 µH | 1.5 µH |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 7.2 A | 9.2 A | 7.2 A | 7.5 A | 7.9 A |
| Current - Saturation (Isat) | 11A | 12A | 11A | 7A | 7.1A |
| Shielding | Shielded | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 20.7mOhm Max | 13.7mOhm Max | 20.7mOhm Max | 18.5mOhm Max | 19.8mOhm Max |
| Q @ Freq | - | - | - | - | - |
| Frequency - Self Resonant | 42MHz | 59MHz | - | 39MHz | 49.2MHz |
| Ratings | AEC-Q200 | AEC-Q200 | - | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 155°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - | - |
| Size / Dimension | 0.216" L x 0.204" W (5.49mm x 5.18mm) | 0.216" L x 0.204" W (5.49mm x 5.18mm) | 0.216" L x 0.204" W (5.49mm x 5.18mm) | 0.216" L x 0.204" W (5.49mm x 5.18mm) | 0.216" L x 0.204" W (5.49mm x 5.18mm) |
| Height - Seated (Max) | 0.118" (3.00mm) | 0.118" (3.00mm) | 0.118" (3.00mm) | 0.118" (3.00mm) | 0.118" (3.00mm) |
