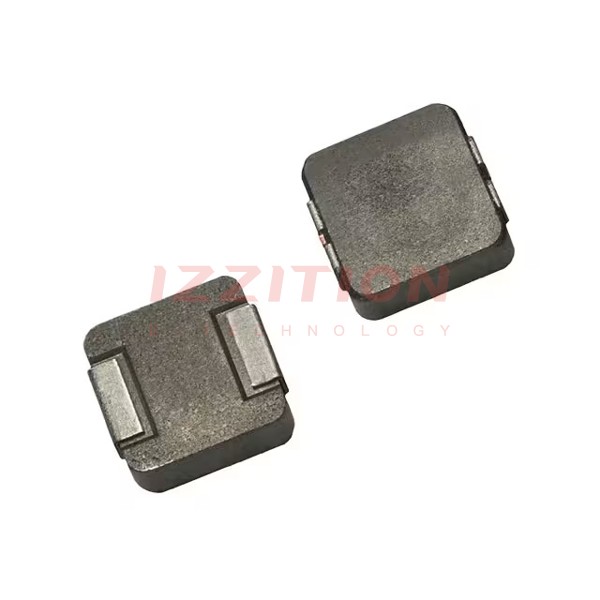

| Part Number | IHLP2020BZER2R2MA1 | IHLP2020CZER2R2MA1 | IHLP2020BZER2R2M01 | IHLP2020BZER2R2M11 | IHLP2020BZER2R2M51 |
|---|---|---|---|---|---|
| Manufacturer | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale |
| Product Status | Active | Active | Active | Active | Active |
| Type | - | - | Molded | Molded | - |
| Material - Core | Metal Composite | Metal Composite | - | - | Metal Composite |
| Inductance | 2.2 µH | 2.2 µH | 2.2 µH | 2.2 µH | 2.2 µH |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 4.2 A | 5.8 A | 4.2 A | 5 A | 5.1 A |
| Current - Saturation (Isat) | 12.5A | 10A | 9.5A | 5.5A | 6.4A |
| Shielding | Shielded | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 50.1mOhm Max | 29.2mOhm Max | 50.1mOhm Max | 37.7mOhm Max | 47.6mOhm Max |
| Q @ Freq | - | - | - | - | - |
| Frequency - Self Resonant | 39MHz | 39MHz | 39MHz | 41MHz | 43.1MHz |
| Ratings | AEC-Q200 | AEC-Q200 | - | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 155°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - | - |
| Size / Dimension | 0.216" L x 0.204" W (5.49mm x 5.18mm) | 0.216" L x 0.204" W (5.49mm x 5.18mm) | 0.216" L x 0.204" W (5.49mm x 5.18mm) | 0.216" L x 0.204" W (5.49mm x 5.18mm) | 0.216" L x 0.204" W (5.49mm x 5.18mm) |
| Height - Seated (Max) | 0.079" (2.00mm) | 0.118" (3.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) |
