Please send RFQ , we will respond immediately.

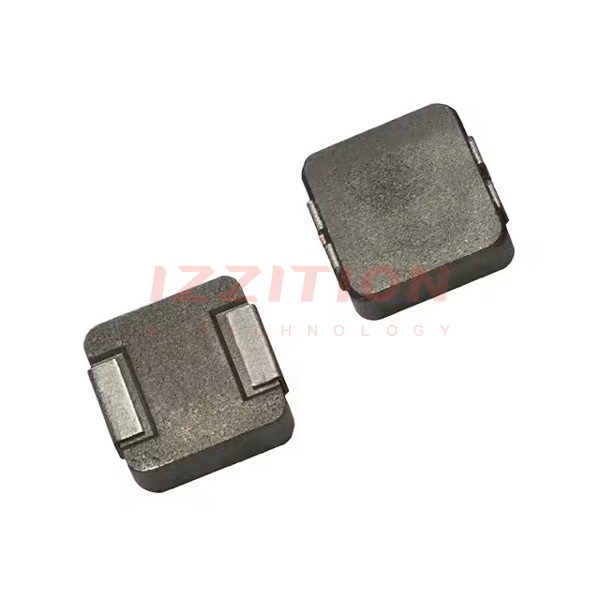

| Part Number | IHLP2020BZER100M51 | IHLP2020CZER100M51 | IHLP2020BZER100M01 | IHLP2020BZER100M11 |
|---|---|---|---|---|
| Manufacturer | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale |
| Product Status | Active | Active | Active | Active |
| Type | - | - | Molded | Molded |
| Material - Core | Metal Composite | Metal Composite | - | - |
| Inductance | 10 µH | 10 µH | 10 µH | 10 µH |
| Tolerance | ±20% | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 2.5 A | 2.8 A | 2.3 A | 2.2 A |
| Current - Saturation (Isat) | 2.13A | 1.6A | 4A | 2A |
| Shielding | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 193.7mOhm Max | 138mOhm Max | 199mOhm Max | 182.8mOhm Max |
| Q @ Freq | - | - | - | - |
| Frequency - Self Resonant | 17.5MHz | 15.9MHz | 20MHz | 17MHz |
| Ratings | - | - | - | - |
| Operating Temperature | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - |
| Size / Dimension | 0.216" L x 0.204" W (5.49mm x 5.18mm) | 0.216" L x 0.204" W (5.49mm x 5.18mm) | 0.216" L x 0.204" W (5.49mm x 5.18mm) | 0.216" L x 0.204" W (5.49mm x 5.18mm) |
| Height - Seated (Max) | 0.079" (2.00mm) | 0.118" (3.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) |
