Please send RFQ , we will respond immediately.

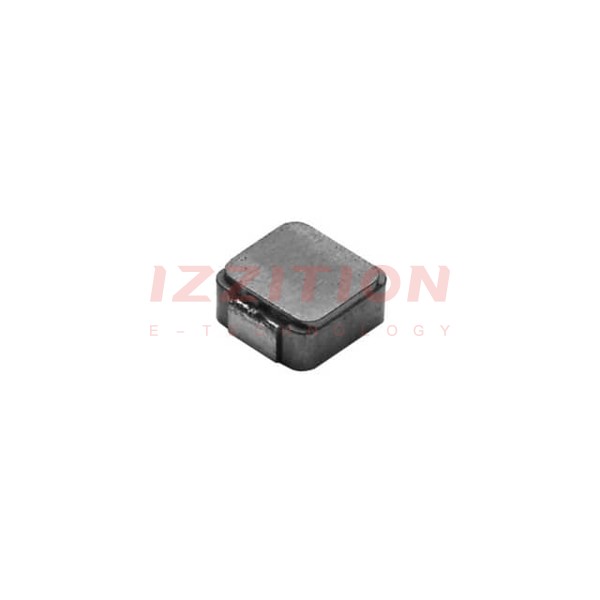

| Part Number | IHLP1616BZETR10N01 | IHLP1616BZETR10N11 |
|---|---|---|
| Manufacturer | Vishay Dale | Vishay Dale |
| Product Status | Obsolete | Obsolete |
| Type | Molded | Molded |
| Material - Core | - | - |
| Inductance | 100 nH | 100 nH |
| Tolerance | ±30% | ±20% |
| Current Rating (Amps) | 16 A | 12 A |
| Current - Saturation (Isat) | 35A | 12A |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 5mOhm Max | 4.5mOhm Max |
| Q @ Freq | - | - |
| Frequency - Self Resonant | 327MHz | 299MHz |
| Ratings | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.175" L x 0.160" W (4.45mm x 4.06mm) |
| Height - Seated (Max) | 0.079" (2.00mm) | 0.079" (2.00mm) |
