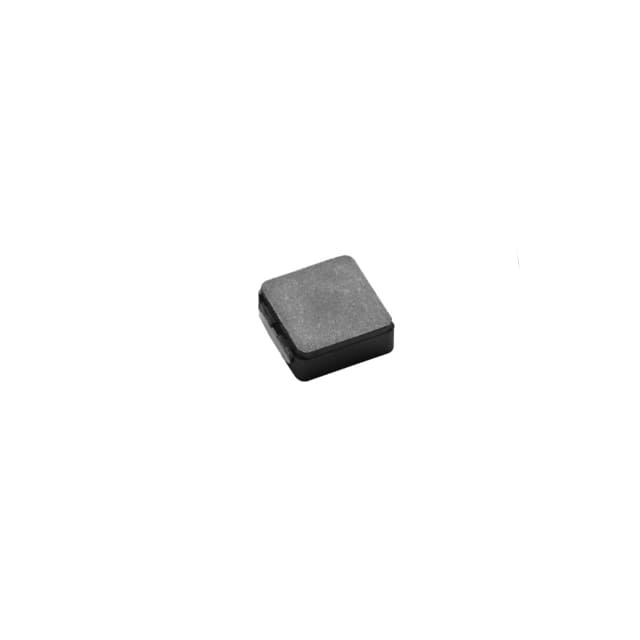

| Part Number | IHLP1616BZET2R2M11 | IHLP1616BZER2R2M11 | IHLP1616BZET2R2M01 |
|---|---|---|---|
| Manufacturer | Vishay Dale | Vishay Dale | Vishay Dale |
| Product Status | Obsolete | Active | Obsolete |
| Type | Molded | Molded | Molded |
| Material - Core | - | - | - |
| Inductance | 2.2 µH | 2.2 µH | 2.2 µH |
| Tolerance | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 3.25 A | 3.25 A | 2.85 A |
| Current - Saturation (Isat) | 3.25A | 3.25A | 6A |
| Shielding | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 68mOhm Max | 68mOhm Max | 90mOhm Max |
| Q @ Freq | - | - | - |
| Frequency - Self Resonant | 40MHz | 40MHz | 39MHz |
| Ratings | - | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - |
| Size / Dimension | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.175" L x 0.160" W (4.45mm x 4.06mm) |
| Height - Seated (Max) | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) |
