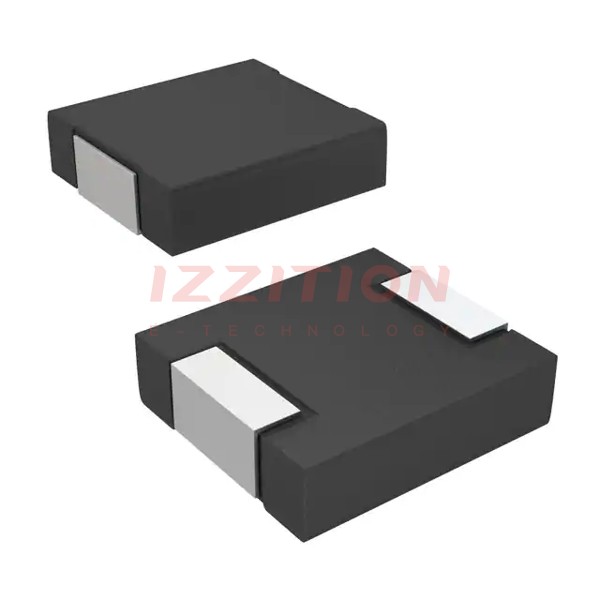

| Part Number | IHLP1616BZERR47M51 | IHLP1616BZERR47MA1 | IHLP1616BZERR47M5A | IHLP1616BZERR47M01 | IHLP1616BZERR47M11 |
|---|---|---|---|---|---|
| Manufacturer | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale |
| Product Status | Active | Active | Active | Active | Active |
| Type | Molded | - | Molded | Molded | Molded |
| Material - Core | - | Metal Composite | - | - | - |
| Inductance | 470 nH | 470 nH | 470 nH | 470 nH | 470 nH |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 9.3 A | 5.6 A | 9.3 A | 5.6 A | 7 A |
| Current - Saturation (Isat) | 6.9A | 11.5A | 6.9A | 11.5A | 7A |
| Shielding | Shielded | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 13.1mOhm Max | 18mOhm Max | 13.1mOhm Max | 18mOhm Max | 16mOhm Max |
| Q @ Freq | - | - | - | - | - |
| Frequency - Self Resonant | 103MHz | 97MHz | 103MHz | 97MHz | 97MHz |
| Ratings | - | AEC-Q200 | AEC-Q200 | - | - |
| Operating Temperature | -55°C ~ 155°C | -55°C ~ 125°C | -55°C ~ 155°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - | - |
| Size / Dimension | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.175" L x 0.160" W (4.45mm x 4.06mm) |
| Height - Seated (Max) | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) |
