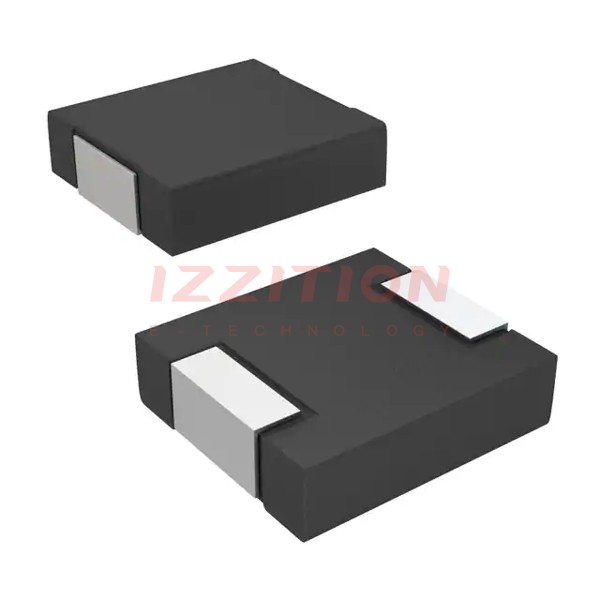

Vishay Dale-IHLP1616BZERR47M01 - Fixed Inductors Product Specifications and Latest Quotes

Part Number	IHLP1616BZERR47M01	IHLP1616BZERR47M11	IHLP1616BZERR47MA1	IHLP1616BZETR47M01	IHLP1616BZERR47M0H	IHLP1616BZERR47M51
Manufacturer	Vishay Dale	Vishay Dale	Vishay Dale	Vishay Dale	Vishay Dale	Vishay Dale
Product Status	Active	Active	Active	Obsolete	Active	Active
Type	Molded	Molded	-	Molded	-	Molded
Material - Core	-	-	Metal Composite	-	Ferrite	-
Inductance	470 nH	470 nH	470 nH	470 nH	470 nH	470 nH
Tolerance	±20%	±20%	±20%	±20%	±20%	±20%
Current Rating (Amps)	5.6 A	7 A	5.6 A	5.6 A	8.5 A	9.3 A
Current - Saturation (Isat)	11.5A	7A	11.5A	11.5A	13.1A	6.9A
Shielding	Shielded	Shielded	Shielded	Shielded	Shielded	Shielded
DC Resistance (DCR)	18mOhm Max	16mOhm Max	18mOhm Max	18mOhm Max	14.1mOhm Max	13.1mOhm Max
Q @ Freq	-	-	-	-	-	-
Frequency - Self Resonant	97MHz	97MHz	97MHz	97MHz	145MHz	103MHz
Ratings	-	-	AEC-Q200	-	-	-
Operating Temperature	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 155°C
Inductance Frequency - Test	100 kHz	100 kHz	100 kHz	100 kHz	100 kHz	100 kHz
Features	-	-	-	-	-	-
Mounting Type	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount
Package / Case	Nonstandard	Nonstandard	Nonstandard	Nonstandard	Nonstandard, 2 Lead	Nonstandard
Supplier Device Package	-	-	-	-	-	-
Size / Dimension	0.175" L x 0.160" W (4.45mm x 4.06mm)	0.175" L x 0.160" W (4.45mm x 4.06mm)	0.175" L x 0.160" W (4.45mm x 4.06mm)	0.175" L x 0.160" W (4.45mm x 4.06mm)	0.160" L x 0.160" W (4.06mm x 4.06mm)	0.175" L x 0.160" W (4.45mm x 4.06mm)
Height - Seated (Max)	0.079" (2.00mm)	0.079" (2.00mm)	0.079" (2.00mm)	0.079" (2.00mm)	0.079" (2.00mm)	0.079" (2.00mm)

Vishay Dale IHLP1616BZERR47M01
