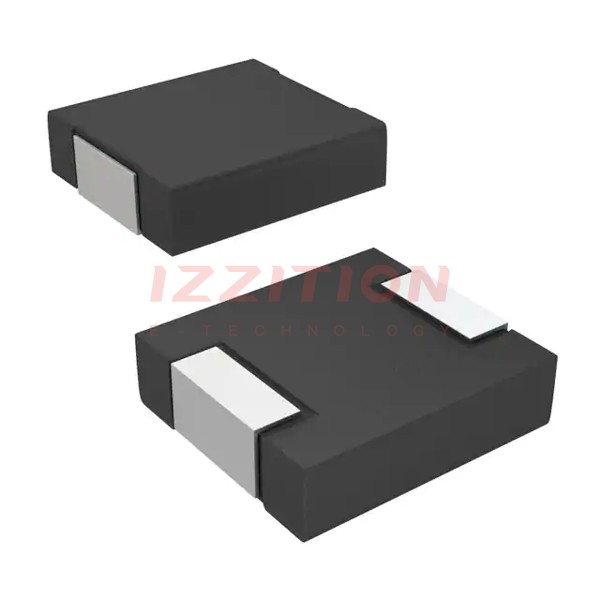

| Part Number | IHLP1616BZER4R7M11 | IHLP1616BZET4R7M11 | IHLP1616BZER4R7M51 |
|---|---|---|---|
| Manufacturer | Vishay Dale | Vishay Dale | Vishay Dale |
| Product Status | Active | Obsolete | Active |
| Type | Molded | Molded | Molded |
| Material - Core | - | - | - |
| Inductance | 4.7 µH | 4.7 µH | 4.7 µH |
| Tolerance | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 1.7 A | 1.7 A | 3.2 A |
| Current - Saturation (Isat) | 1.75A | 1.75A | 1.8A |
| Shielding | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 105mOhm Max | 105mOhm Max | 110mOhm Max |
| Q @ Freq | - | - | - |
| Frequency - Self Resonant | 29MHz | 29MHz | 28MHz |
| Ratings | - | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 155°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - |
| Size / Dimension | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.175" L x 0.160" W (4.45mm x 4.06mm) |
| Height - Seated (Max) | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) |
