Please send RFQ , we will respond immediately.

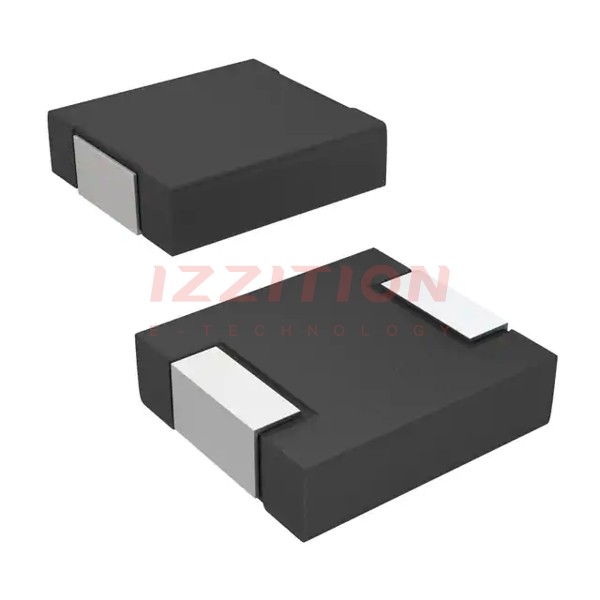

| Part Number | IHLP1616BZER1R0M11 | IHLP1616BZET1R0M11 | IHLP1616BZER1R0MA1 | IHLP1616BZER1R0M51 | IHLP1616BZER1R0M1A | IHLP1616BZER1R0M01 |
|---|---|---|---|---|---|---|
| Manufacturer | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale |
| Product Status | Active | Obsolete | Active | Active | Active | Active |
| Type | Molded | Molded | - | Molded | - | Molded |
| Material - Core | - | - | Metal Composite | - | Metal Composite | - |
| Inductance | 1 µH | 1 µH | 1 µH | 1 µH | 1 µH | 1 µH |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 4.5 A | 4.5 A | 3.75 A | 6.2 A | 4.5 A | 3.75 A |
| Current - Saturation (Isat) | 5A | 5A | 8.5A | 4.8A | 5A | 8.5A |
| Shielding | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 27mOhm Max | 27mOhm Max | 37mOhm Max | 27.4mOhm Max | 27mOhm Max | 37mOhm Max |
| Q @ Freq | - | - | - | - | - | - |
| Frequency - Self Resonant | 64MHz | 64MHz | 90MHz | 63MHz | 64MHz | 90MHz |
| Ratings | - | - | AEC-Q200 | - | AEC-Q200 | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 155°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - | - | - |
| Size / Dimension | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.175" L x 0.160" W (4.45mm x 4.06mm) |
| Height - Seated (Max) | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) |
