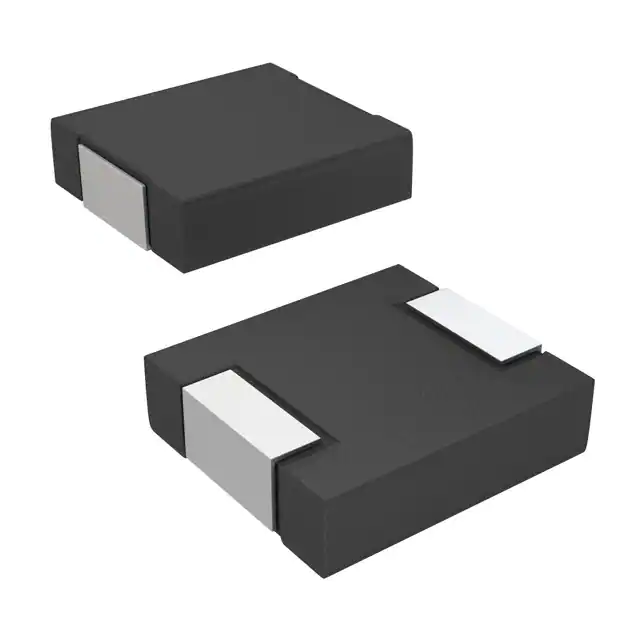

| Part Number | IHLP1616BZER1R0M01 | IHLP1616BZER1R0M11 | IHLP1616BZER1R0M0H | IHLP1616BZET1R0M01 | IHLP1616BZER1R0MA1 | IHLP1616BZER1R0M51 |
|---|---|---|---|---|---|---|
| Manufacturer | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale |
| Product Status | Active | Active | Active | Obsolete | Active | Active |
| Type | Molded | Molded | - | Molded | - | Molded |
| Material - Core | - | - | Ferrite | - | Metal Composite | - |
| Inductance | 1 µH | 1 µH | 1 µH | 1 µH | 1 µH | 1 µH |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 3.75 A | 4.5 A | 6.1 A | 3.75 A | 3.75 A | 6.2 A |
| Current - Saturation (Isat) | 8.5A | 5A | 10.3A | 8.5A | 8.5A | 4.8A |
| Shielding | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 37mOhm Max | 27mOhm Max | 28.5mOhm Max | 37mOhm Max | 37mOhm Max | 27.4mOhm Max |
| Q @ Freq | - | - | - | - | - | - |
| Frequency - Self Resonant | 90MHz | 64MHz | 91MHz | 90MHz | 90MHz | 63MHz |
| Ratings | - | - | - | - | AEC-Q200 | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 155°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard, 2 Lead | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - | - | - |
| Size / Dimension | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.160" L x 0.160" W (4.06mm x 4.06mm) | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.175" L x 0.160" W (4.45mm x 4.06mm) |
| Height - Seated (Max) | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) |
