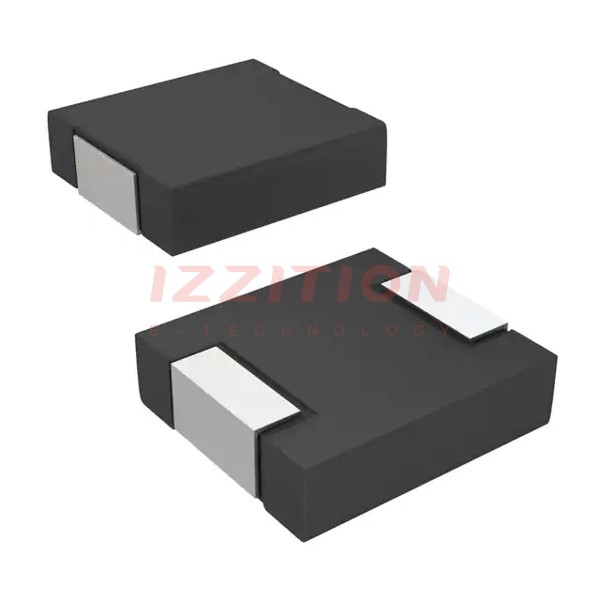

| Part Number | IHLP1616ABERR47M11 | IHLP1616ABERR47MA1 | IHLP1616ABERR47M01 |
|---|---|---|---|
| Manufacturer | Vishay Dale | Vishay Dale | Vishay Dale |
| Product Status | Active | Active | Active |
| Type | Molded | - | Molded |
| Material - Core | - | Metal Composite | - |
| Inductance | 470 nH | 470 nH | 470 nH |
| Tolerance | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 6 A | 5 A | 5 A |
| Current - Saturation (Isat) | 5.7A | 13A | 13A |
| Shielding | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 21mOhm Max | 22mOhm Max | 22mOhm Max |
| Q @ Freq | - | - | - |
| Frequency - Self Resonant | 117MHz | 101MHz | 101MHz |
| Ratings | - | AEC-Q200 | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - |
| Size / Dimension | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.175" L x 0.160" W (4.45mm x 4.06mm) |
| Height - Seated (Max) | 0.047" (1.20mm) | 0.047" (1.20mm) | 0.047" (1.20mm) |
