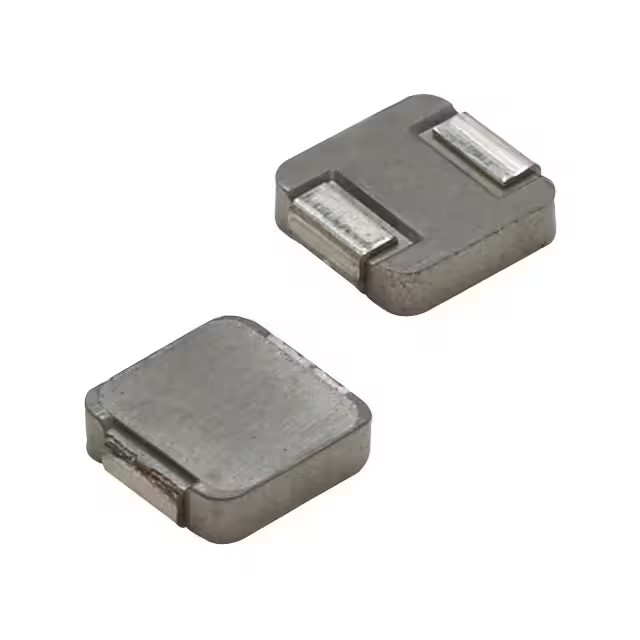

| Part Number | IHLP1616ABER47NMA1 | IHLP1616ABER47NM01 | IHLP1616ABER47NM11 |
|---|---|---|---|
| Manufacturer | Vishay Dale | Vishay Dale | Vishay Dale |
| Product Status | Active | Active | Obsolete |
| Type | - | Molded | Molded |
| Material - Core | Metal Composite | - | - |
| Inductance | 47 nH | 47 nH | 47 nH |
| Tolerance | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 13 A | 13 A | 15 A |
| Current - Saturation (Isat) | 32A | 32A | 15A |
| Shielding | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 3.75mOhm Max | 3.75mOhm Max | 3.3mOhm Max |
| Q @ Freq | - | - | - |
| Frequency - Self Resonant | 565MHz | 565MHz | - |
| Ratings | AEC-Q200 | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - |
| Size / Dimension | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.175" L x 0.160" W (4.45mm x 4.06mm) |
| Height - Seated (Max) | 0.047" (1.20mm) | 0.047" (1.20mm) | 0.047" (1.20mm) |
