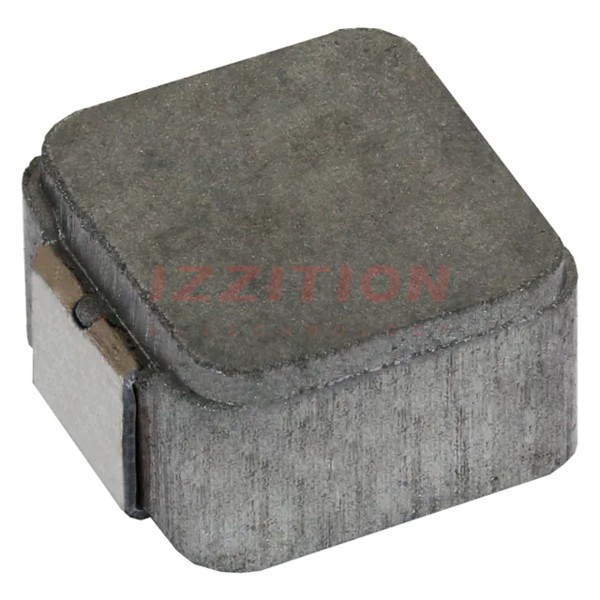

| Part Number | IHLP1212BZEVR22M5A | IHLP1212AZEVR22M5A |
|---|---|---|
| Manufacturer | Vishay Dale | Vishay Dale |
| Product Status | Active | Active |
| Type | Molded | Molded |
| Material - Core | - | - |
| Inductance | 220 nH | 220 nH |
| Tolerance | ±20% | ±20% |
| Current Rating (Amps) | 8.35 A | 7.72 A |
| Current - Saturation (Isat) | 5.75A | 5.88A |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 13.74mOhm Max | 14.87mOhm Max |
| Q @ Freq | - | - |
| Frequency - Self Resonant | 215MHz | 225MHz |
| Ratings | AEC-Q200 | AEC-Q200 |
| Operating Temperature | -55°C ~ 155°C | -55°C ~ 155°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.140" L x 0.130" W (3.56mm x 3.30mm) | 0.140" L x 0.130" W (3.56mm x 3.30mm) |
| Height - Seated (Max) | 0.079" (2.00mm) | 0.039" (1.00mm) |
