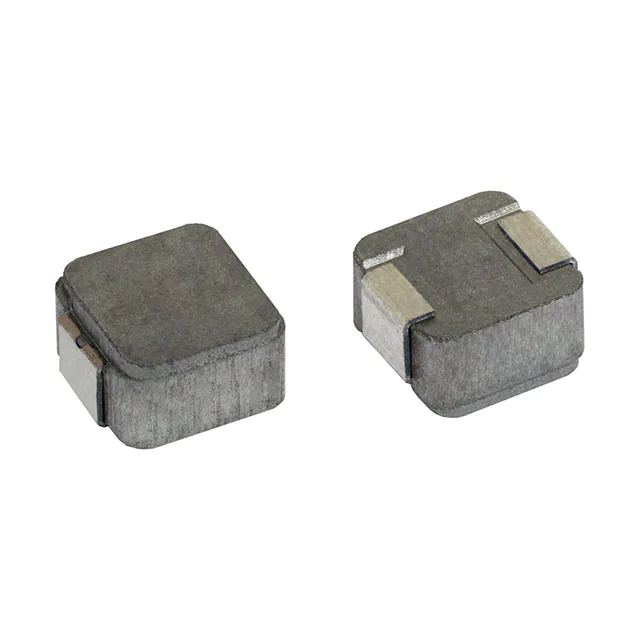

| Part Number | IHLP1212BZEV3R3MA1 | IHLP1212BZEV3R3M01 |
|---|---|---|
| Manufacturer | Vishay Dale | Vishay Dale |
| Product Status | Active | Active |
| Type | - | - |
| Material - Core | Metal Composite | - |
| Inductance | 3.3 µH | - |
| Tolerance | ±20% | - |
| Current Rating (Amps) | 3.3 A | - |
| Current - Saturation (Isat) | 4.5A | - |
| Shielding | Shielded | - |
| DC Resistance (DCR) | 98.48mOhm Max | - |
| Q @ Freq | - | - |
| Frequency - Self Resonant | 41.6MHz | - |
| Ratings | AEC-Q200 | - |
| Operating Temperature | -55°C ~ 125°C | - |
| Inductance Frequency - Test | 100 kHz | - |
| Features | - | - |
| Mounting Type | Surface Mount | - |
| Package / Case | Nonstandard | - |
| Supplier Device Package | - | - |
| Size / Dimension | 0.140" L x 0.130" W (3.56mm x 3.30mm) | - |
| Height - Seated (Max) | 0.079" (2.00mm) | - |
