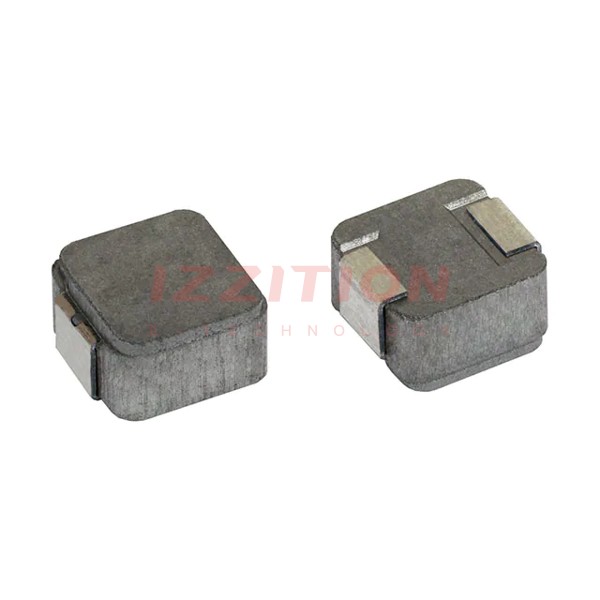

| Part Number | IHLP1212BZEV2R2M01 | IHLP1212BZEV2R2MA1 |
|---|---|---|
| Manufacturer | Vishay Dale | Vishay Dale |
| Product Status | Active | Active |
| Type | - | - |
| Material - Core | Metal Composite | Metal Composite |
| Inductance | 2.2 µH | 2.2 µH |
| Tolerance | ±20% | ±20% |
| Current Rating (Amps) | 3.55 A | 3.55 A |
| Current - Saturation (Isat) | 4.93A | 4.93A |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 80.37mOhm Max | 80.37mOhm Max |
| Q @ Freq | - | - |
| Frequency - Self Resonant | 50MHz | 50MHz |
| Ratings | - | AEC-Q200 |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.140" L x 0.130" W (3.56mm x 3.30mm) | 0.140" L x 0.130" W (3.56mm x 3.30mm) |
| Height - Seated (Max) | 0.079" (2.00mm) | 0.079" (2.00mm) |
