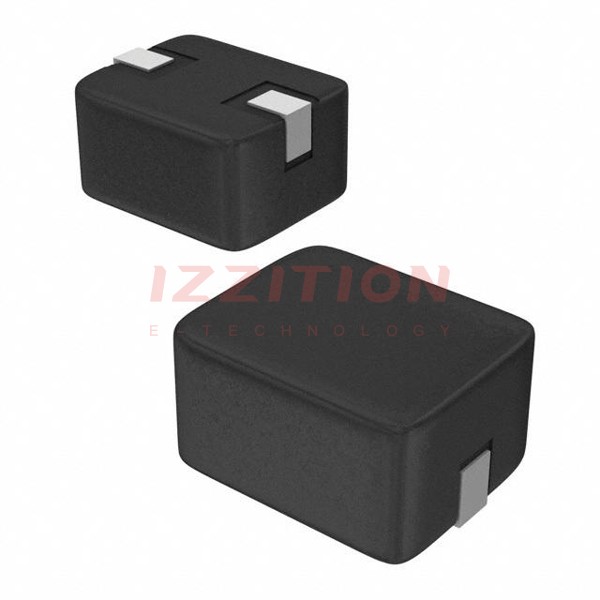

| Part Number | IHLP1212BZERR88M11 | IHLP1212BZERR68M11 |
|---|---|---|
| Manufacturer | Vishay Dale | Vishay Dale |
| Product Status | Active | Active |
| Type | Molded | Molded |
| Material - Core | - | - |
| Inductance | 880 nH | 680 nH |
| Tolerance | ±20% | ±20% |
| Current Rating (Amps) | 5.5 A | 5.5 A |
| Current - Saturation (Isat) | 4.5A | 5A |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 22mOhm Max | 20.4mOhm Max |
| Q @ Freq | - | - |
| Frequency - Self Resonant | 85MHz | 105MHz |
| Ratings | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.144" L x 0.118" W (3.65mm x 3.00mm) | 0.144" L x 0.118" W (3.65mm x 3.00mm) |
| Height - Seated (Max) | 0.079" (2.00mm) | 0.079" (2.00mm) |
