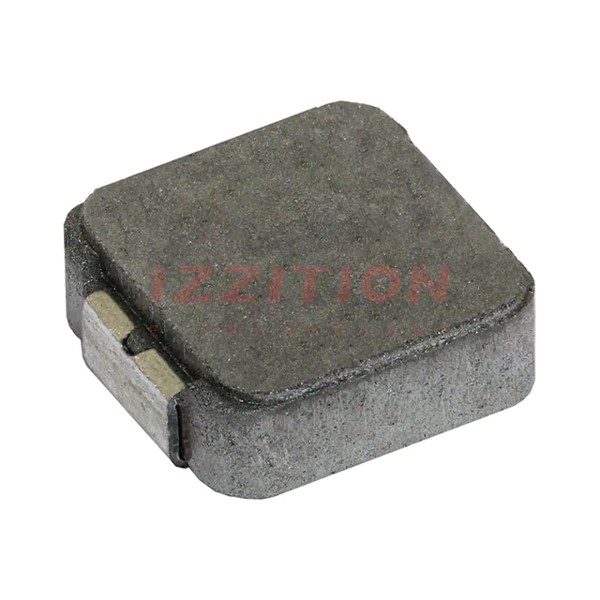

| Part Number | IHLP1212ABEV1R2M5A | IHLP1212ABEV1R0M5A |
|---|---|---|
| Manufacturer | Vishay Dale | Vishay Dale |
| Product Status | Active | Active |
| Type | Molded | Molded |
| Material - Core | - | - |
| Inductance | 1.2 µH | 1 µH |
| Tolerance | ±20% | ±20% |
| Current Rating (Amps) | 3.98 A | 4.05 A |
| Current - Saturation (Isat) | 3.84A | 4.3A |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 57.65mOhm Max | 49.6mOhm Max |
| Q @ Freq | - | - |
| Frequency - Self Resonant | 82MHz | 87MHz |
| Ratings | AEC-Q200 | AEC-Q200 |
| Operating Temperature | -55°C ~ 155°C | -55°C ~ 155°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.140" L x 0.130" W (3.56mm x 3.30mm) | 0.140" L x 0.130" W (3.56mm x 3.30mm) |
| Height - Seated (Max) | 0.047" (1.20mm) | 0.047" (1.20mm) |
