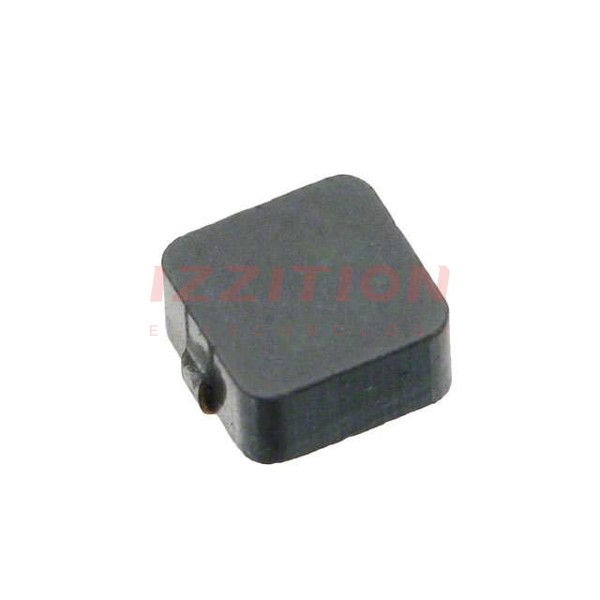

| Part Number | IHLP1212ABERR22M11 | IHLP1212AEERR22M11 |
|---|---|---|
| Manufacturer | Vishay Dale | Vishay Dale |
| Product Status | Active | Active |
| Type | Molded | Molded |
| Material - Core | - | - |
| Inductance | 220 nH | 220 nH |
| Tolerance | ±20% | ±20% |
| Current Rating (Amps) | 9.3 A | 8.5 A |
| Current - Saturation (Isat) | 9.3A | 9A |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 11.4mOhm Max | 11.4mOhm Max |
| Q @ Freq | - | - |
| Frequency - Self Resonant | 220MHz | - |
| Ratings | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.144" L x 0.118" W (3.65mm x 3.00mm) | 0.144" L x 0.118" W (3.65mm x 3.00mm) |
| Height - Seated (Max) | 0.047" (1.20mm) | 0.059" (1.50mm) |
