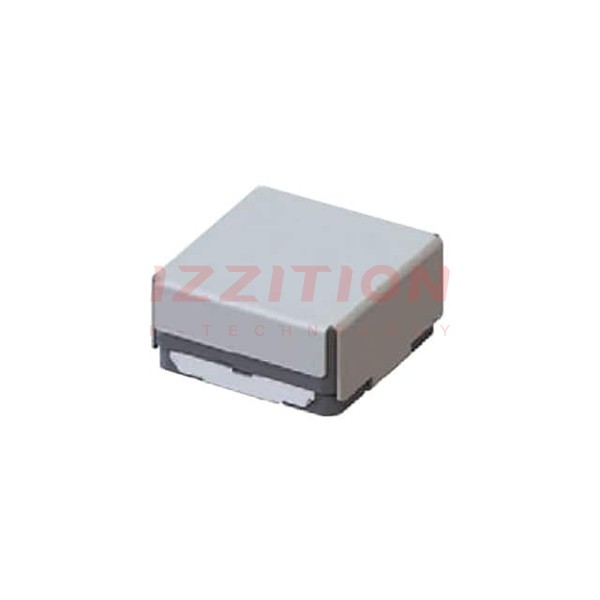

| Part Number | IHLE5050FHER680M5A | IHLE5050FHER680M51 |
|---|---|---|
| Manufacturer | Vishay Dale | Vishay Dale |
| Product Status | Active | Obsolete |
| Type | Wirewound | Wirewound |
| Material - Core | - | - |
| Inductance | 68 µH | 68 µH |
| Tolerance | ±20% | ±20% |
| Current Rating (Amps) | 4.9 A | 4.9 A |
| Current - Saturation (Isat) | 4.6A | 4.6A |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 105.6mOhm Max | 105.6mOhm Max |
| Q @ Freq | - | - |
| Frequency - Self Resonant | 3.4MHz | 3.4MHz |
| Ratings | - | - |
| Operating Temperature | -55°C ~ 155°C | -55°C ~ 155°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.550" L x 0.535" W (13.97mm x 13.59mm) | 0.550" L x 0.535" W (13.97mm x 13.59mm) |
| Height - Seated (Max) | 0.268" (6.80mm) | 0.268" (6.80mm) |
