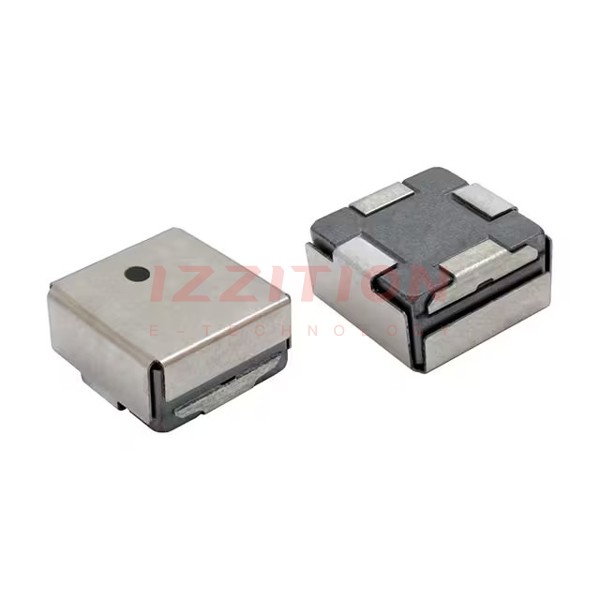

| Part Number | IHLE5050FHER100M5A | IHLE5050FHER150M5A | IHLE5050FHER101M5A |
|---|---|---|---|
| Manufacturer | Vishay Dale | Vishay Dale | Vishay Dale |
| Product Status | Active | Active | Active |
| Type | - | - | Wirewound |
| Material - Core | Metal Composite | Metal Composite | - |
| Inductance | 10 µH | 15 µH | 100 µH |
| Tolerance | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 12.1 A | 10.1 A | 3.1 A |
| Current - Saturation (Isat) | 7.8A | 7.7A | 4.3A |
| Shielding | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 17.76mOhm Max | 25.68mOhm Max | 205mOhm Max |
| Q @ Freq | - | - | - |
| Frequency - Self Resonant | 10.7MHz | 8.8MHz | 2.8MHz |
| Ratings | AEC-Q200 | AEC-Q200 | - |
| Operating Temperature | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - |
| Size / Dimension | 0.550" L x 0.535" W (13.97mm x 13.59mm) | 0.550" L x 0.535" W (13.97mm x 13.59mm) | 0.550" L x 0.535" W (13.97mm x 13.59mm) |
| Height - Seated (Max) | 0.268" (6.80mm) | 0.268" (6.80mm) | 0.268" (6.80mm) |
