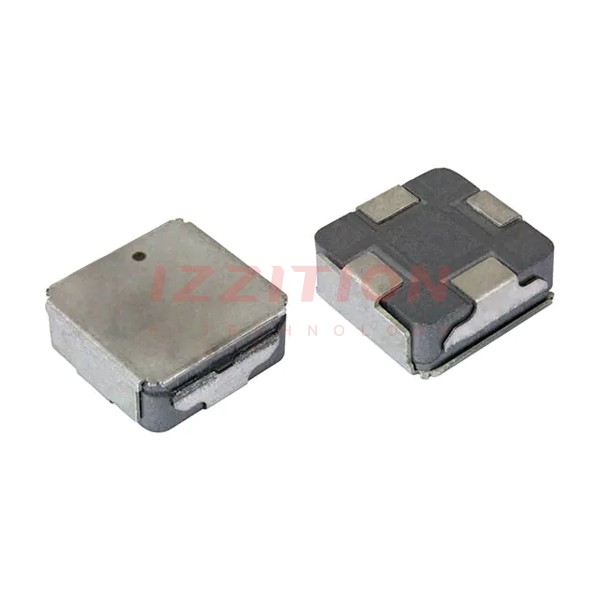

| Part Number | IHLE4040DDER100M5A | IHLE4040DDER1R0M5A | IHLE4040DDEW100M5A | IHLE4040DDER150M5A |
|---|---|---|---|---|
| Manufacturer | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale |
| Product Status | Active | Active | Active | Active |
| Type | - | Wirewound | - | - |
| Material - Core | Metal Composite | - | Metal Composite | Metal Composite |
| Inductance | 10 µH | 1 µH | 10 µH | 15 µH |
| Tolerance | ±20% | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 6.5 A | 23.5 A | 6.5 A | 5.1 A |
| Current - Saturation (Isat) | 8.5A | 24A | 8.5A | 7.7A |
| Shielding | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 33.06mOhm Max | 3.07mOhm Max | 33.06mOhm Max | 50.29mOhm Max |
| Q @ Freq | - | - | - | - |
| Frequency - Self Resonant | 11.5MHz | - | 11.5MHz | 10.4MHz |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Operating Temperature | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | 4-SMD | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - |
| Size / Dimension | 0.430" L x 0.426" W (10.92mm x 10.82mm) | 0.426" L x 0.426" W (10.82mm x 10.82mm) | 0.430" L x 0.426" W (10.92mm x 10.82mm) | 0.430" L x 0.426" W (10.92mm x 10.82mm) |
| Height - Seated (Max) | 0.174" (4.42mm) | 0.169" (4.30mm) | 0.174" (4.42mm) | 0.174" (4.42mm) |
