IHLE2525CDER5R6M5A
  • Share:

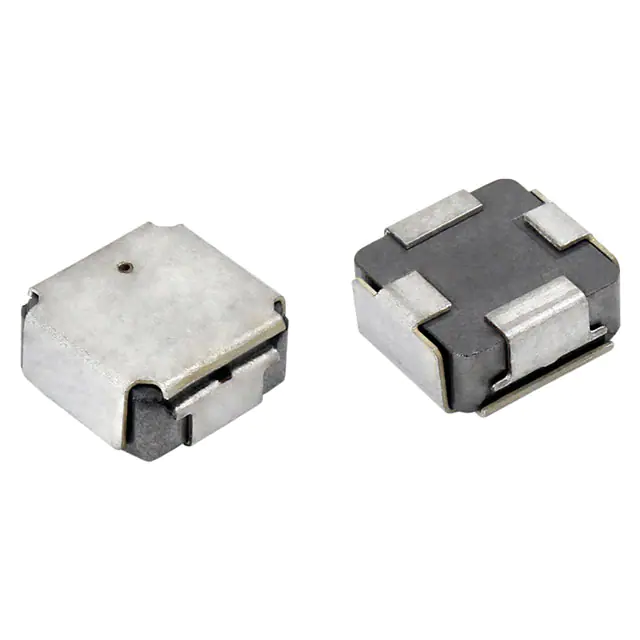

Vishay Dale IHLE2525CDER5R6M5A

Manufacturer No:
IHLE2525CDER5R6M5A
Manufacturer:
Vishay Dale
Package:
Tape & Reel (TR)
Datasheet:
IHLE2525CDER5R6M5A Datasheet
ECAD Model:
-
Description:
IHLE-2525CD-5A 5.6 20% ER E3
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Type:-
Material - Core:Metal Composite
Inductance:5.6 µH
Tolerance:±20%
Current Rating (Amps):5.3 A
Current - Saturation (Isat):4.8A
Shielding:Shielded
DC Resistance (DCR):45.6mOhm Max
Q @ Freq:-
Frequency - Self Resonant:22.8MHz
Ratings:AEC-Q200
Operating Temperature:-55°C ~ 155°C
Inductance Frequency - Test:100 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard, 4 Lead
Supplier Device Package:Nonstandard, 4 Lead
Size / Dimension:0.284" L x 0.280" W (7.21mm x 7.12mm)
Height - Seated (Max):0.132" (3.35mm)
0 Remaining View Similar

In Stock

$1.64
148

Please send RFQ , we will respond immediately.
