IHLE2525CDER2R2M5A

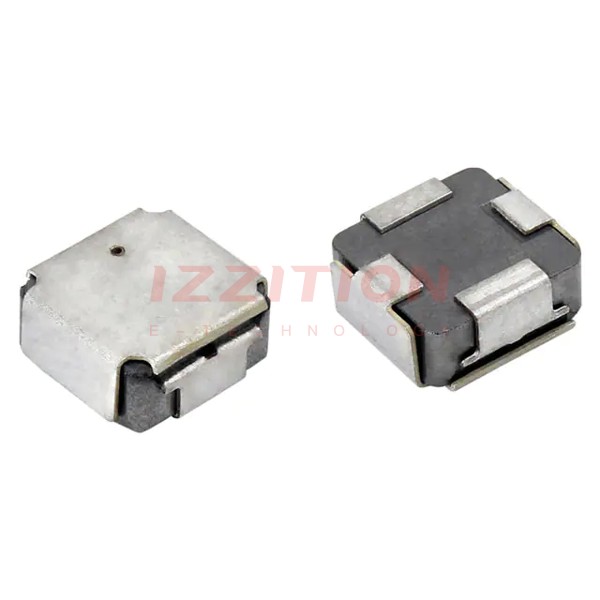

IHLE2525CDER2R2M5A Image
×
Favorite
Compare
Add to RFQ
Share:
Vishay Dale IHLE2525CDER2R2M5A
Manufacturer No:
IHLE2525CDER2R2M5A
Manufacturer:
Vishay Dale
Package:
Tape & Reel (TR)
Datasheet:
IHLE2525CDER2R2M5A Datasheet
ECAD Model:
-
Description:
IHLE-2525CD-5A 2.2 20% ER E3
Delivery:
Payment:
Product Attributes
Type:
-
Material - Core:
Metal Composite
Inductance:
2.2 µH
Tolerance:
±20%
Current Rating (Amps):
8.1 A
Current - Saturation (Isat):
10.8A
Shielding:
Shielded
DC Resistance (DCR):
18.3mOhm Max
Q @ Freq:
-
Frequency - Self Resonant:
31.2MHz
Ratings:
AEC-Q200
Operating Temperature:
-55°C ~ 155°C
Inductance Frequency - Test:
100 kHz
Features:
-
Mounting Type:
Surface Mount
Package / Case:
Nonstandard, 4 Lead
Supplier Device Package:
Nonstandard, 4 Lead
Size / Dimension:
0.284" L x 0.280" W (7.21mm x 7.12mm)
Height - Seated (Max):
0.132" (3.35mm)
0
Remaining
View Similar
In Stock
UnitPrice:
$1.62
Quantity:
34
