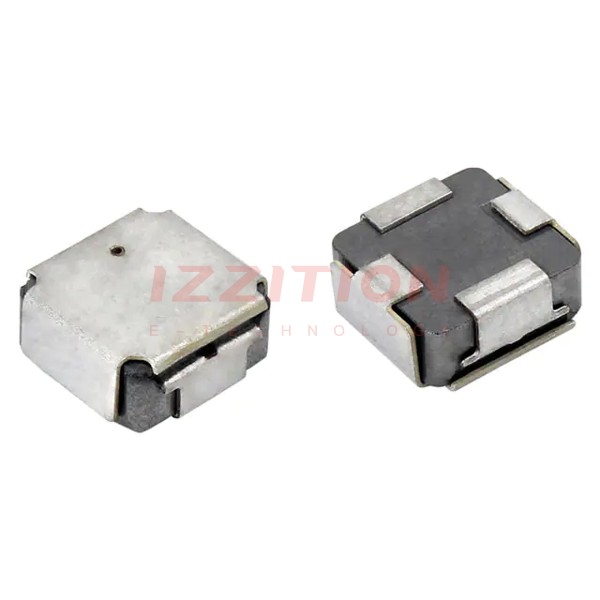

| Part Number | IHLE2525CDER100M5A | IHLE2525CDER150M5A | IHLE2525CDER1R0M5A |
|---|---|---|---|
| Manufacturer | Vishay Dale | Vishay Dale | Vishay Dale |
| Product Status | Active | Active | Active |
| Type | - | - | - |
| Material - Core | Metal Composite | Metal Composite | Metal Composite |
| Inductance | 10 µH | 15 µH | 1 µH |
| Tolerance | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 4 A | 2.9 A | 12 A |
| Current - Saturation (Isat) | 2.9A | 2.8A | 13A |
| Shielding | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 76.9mOhm Max | 127mOhm Max | 8.45mOhm Max |
| Q @ Freq | - | - | - |
| Frequency - Self Resonant | 14MHz | 10.4MHz | 53.2MHz |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Operating Temperature | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard, 4 Lead | Nonstandard, 4 Lead | Nonstandard, 4 Lead |
| Supplier Device Package | Nonstandard, 4 Lead | Nonstandard, 4 Lead | Nonstandard, 4 Lead |
| Size / Dimension | 0.284" L x 0.280" W (7.21mm x 7.12mm) | 0.284" L x 0.280" W (7.21mm x 7.12mm) | 0.284" L x 0.280" W (7.21mm x 7.12mm) |
| Height - Seated (Max) | 0.132" (3.35mm) | 0.132" (3.35mm) | 0.132" (3.35mm) |
