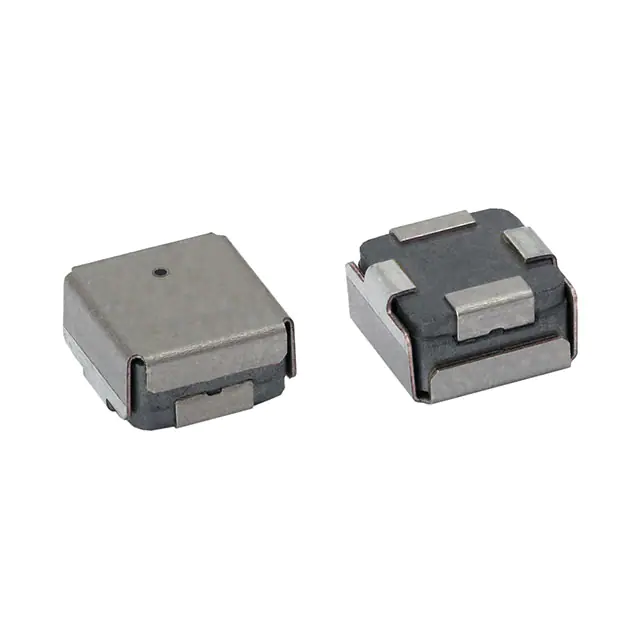

| Part Number | IHLE2020CDER2R2M5A | IHLE2020CDER2R2M51 |
|---|---|---|
| Manufacturer | Vishay Dale | Vishay Dale |
| Product Status | Active | Active |
| Type | - | - |
| Material - Core | Iron Powder | Iron Powder |
| Inductance | 2.2 µH | 2.2 µH |
| Tolerance | ±20% | ±20% |
| Current Rating (Amps) | 6.5 A | 6.5 A |
| Current - Saturation (Isat) | 7.1A | 7.1A |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 26mOhm Max | 26mOhm Max |
| Q @ Freq | - | - |
| Frequency - Self Resonant | 39.8MHz | 39.8MHz |
| Ratings | AEC-Q200 | AEC-Q200 |
| Operating Temperature | -55°C ~ 155°C | -55°C ~ 155°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.232" L x 0.216" W (5.89mm x 5.49mm) | 0.232" L x 0.216" W (5.89mm x 5.49mm) |
| Height - Seated (Max) | 0.135" (3.43mm) | 0.135" (3.43mm) |
