IHLE2020CDER1R5M51
  • Share:

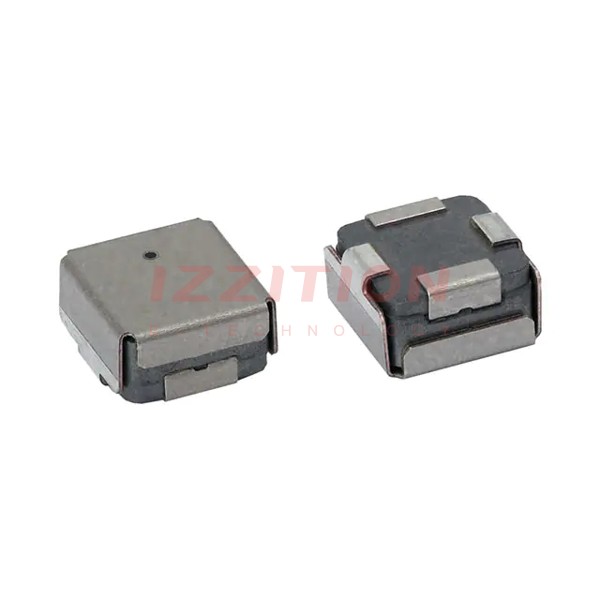

Vishay Dale IHLE2020CDER1R5M51

Manufacturer No:
IHLE2020CDER1R5M51
Manufacturer:
Vishay Dale
Package:
Tape & Reel (TR)
Datasheet:
IHLE2020CDER1R5M51 Datasheet
ECAD Model:
-
Description:
IHLE-2020CD-51 1.5 20% ER E3
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Type:-
Material - Core:Iron Powder
Inductance:1.5 µH
Tolerance:±20%
Current Rating (Amps):7.9 A
Current - Saturation (Isat):9.4A
Shielding:Shielded
DC Resistance (DCR):19.8mOhm Max
Q @ Freq:-
Frequency - Self Resonant:49.2MHz
Ratings:AEC-Q200
Operating Temperature:-55°C ~ 155°C
Inductance Frequency - Test:100 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.232" L x 0.216" W (5.89mm x 5.49mm)
Height - Seated (Max):0.135" (3.43mm)
0 Remaining View Similar

In Stock

$1.64
304

Please send RFQ , we will respond immediately.

Similar Products

Part Number IHLE2020CDER1R5M51 IHLE2020CDER1R5M5A   IHLE2020CDER1R0M51
Manufacturer Vishay Dale Vishay Dale Vishay Dale
Product Status Active Active Active
Type - - -
Material - Core Iron Powder Iron Powder Iron Powder
Inductance 1.5 µH 1.5 µH 1 µH
Tolerance ±20% ±20% ±20%
Current Rating (Amps) 7.9 A 7.9 A 9.8 A
Current - Saturation (Isat) 9.4A 9.4A 10.3A
Shielding Shielded Shielded Shielded
DC Resistance (DCR) 19.8mOhm Max 19.8mOhm Max 12.1mOhm Max
Q @ Freq - - -
Frequency - Self Resonant 49.2MHz 49.2MHz 66MHz
Ratings AEC-Q200 AEC-Q200 AEC-Q200
Operating Temperature -55°C ~ 155°C -55°C ~ 155°C -55°C ~ 155°C
Inductance Frequency - Test 100 kHz 100 kHz 100 kHz
Features - - -
Mounting Type Surface Mount Surface Mount Surface Mount
Package / Case Nonstandard Nonstandard Nonstandard
Supplier Device Package - - -
Size / Dimension 0.232" L x 0.216" W (5.89mm x 5.49mm) 0.232" L x 0.216" W (5.89mm x 5.49mm) 0.232" L x 0.216" W (5.89mm x 5.49mm)
Height - Seated (Max) 0.135" (3.43mm) 0.135" (3.43mm) 0.135" (3.43mm)
