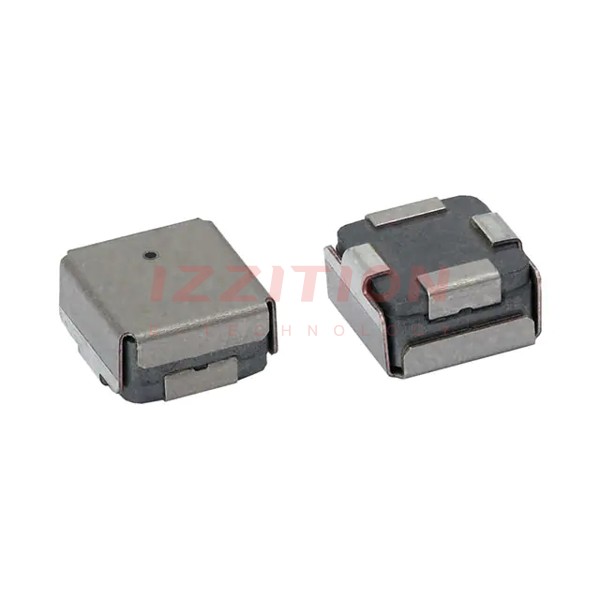

| Part Number | IHLE2020CDER1R0M51 | IHLE2020CDER1R5M51 | IHLE2020CDER1R0M5A | IHLE2020CDER100M51 | IHLE2020CDER150M51 |
|---|---|---|---|---|---|
| Manufacturer | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale | Vishay Dale |
| Product Status | Active | Active | Active | Active | Active |
| Type | - | - | - | - | - |
| Material - Core | Iron Powder | Iron Powder | Iron Powder | Iron Powder | Iron Powder |
| Inductance | 1 µH | 1.5 µH | 1 µH | 10 µH | 15 µH |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 9.8 A | 7.9 A | 9.8 A | 2.8 A | 2.4 A |
| Current - Saturation (Isat) | 10.3A | 9.4A | 10.3A | 2.7A | 2.6A |
| Shielding | Shielded | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 12.1mOhm Max | 19.8mOhm Max | 12.1mOhm Max | 138mOhm Max | 208mOhm Max |
| Q @ Freq | - | - | - | - | - |
| Frequency - Self Resonant | 66MHz | 49.2MHz | 66MHz | 15.9MHz | 14.1MHz |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 |
| Operating Temperature | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C | -55°C ~ 155°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - | - | - |
| Size / Dimension | 0.232" L x 0.216" W (5.89mm x 5.49mm) | 0.232" L x 0.216" W (5.89mm x 5.49mm) | 0.232" L x 0.216" W (5.89mm x 5.49mm) | 0.232" L x 0.216" W (5.89mm x 5.49mm) | 0.232" L x 0.216" W (5.89mm x 5.49mm) |
| Height - Seated (Max) | 0.135" (3.43mm) | 0.135" (3.43mm) | 0.135" (3.43mm) | 0.135" (3.43mm) | 0.135" (3.43mm) |
