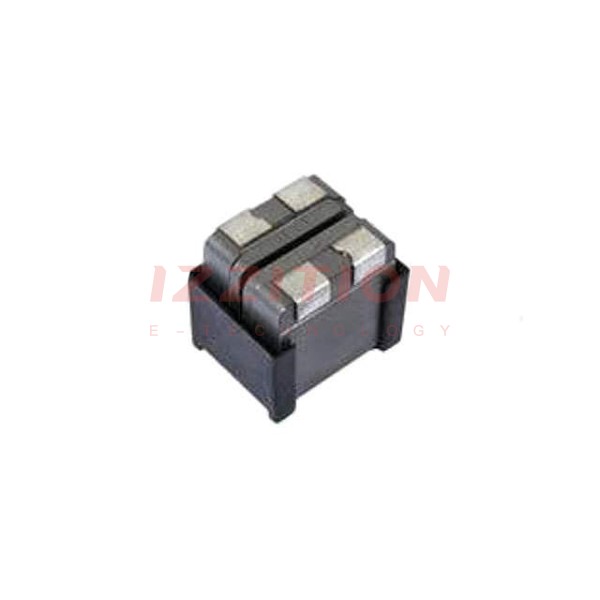

| Part Number | IHLD4032KBER100M5A | IHLD4032KBER150M5A |
|---|---|---|
| Manufacturer | Vishay Dale | Vishay Dale |
| Product Status | Active | Active |
| Type | - | - |
| Material - Core | - | - |
| Inductance | 10 µH | 15 µH |
| Tolerance | ±20% | ±20% |
| Current Rating (Amps) | 5.6 A | 4.6 A |
| Current - Saturation (Isat) | 7.4A | 5.5A |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 32.6mOhm Max | 45.5mOhm Max |
| Q @ Freq | - | - |
| Frequency - Self Resonant | 10.2MHz | 9.5MHz |
| Ratings | AEC-Q200 | AEC-Q200 |
| Operating Temperature | -55°C ~ 155°C | -55°C ~ 155°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 0.384" L x 0.379" W (9.75mm x 9.63mm) | 0.469" L x 0.379" W (11.90mm x 9.62mm) |
| Height - Seated (Max) | 0.365" (9.27mm) | 0.441" (11.20mm) |
