Please send RFQ , we will respond immediately.

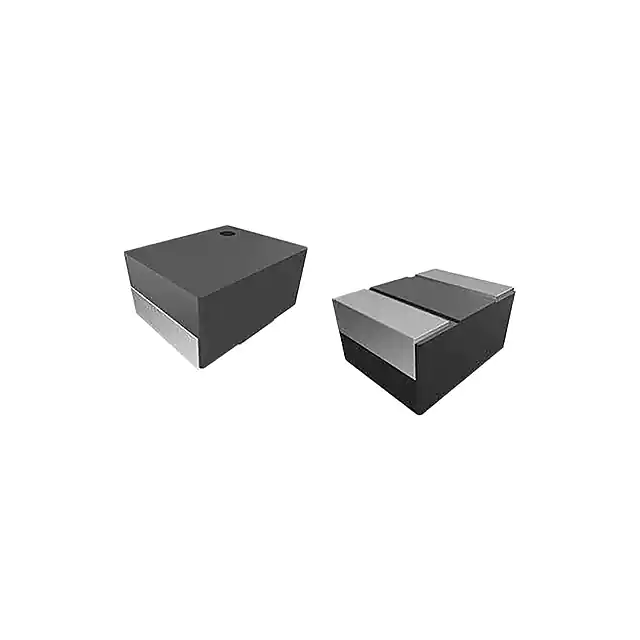

| Part Number | IHHP0806ABERR24M01 | IHHP0806AZERR24M01 | IHHP0806ABERR22M01 |
|---|---|---|---|
| Manufacturer | Vishay Dale | Vishay Dale | Vishay Dale |
| Product Status | Active | Active | Active |
| Type | - | - | - |
| Material - Core | - | - | - |
| Inductance | 240 nH | 240 nH | 220 nH |
| Tolerance | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 4.7 A | 4.7 A | 5.3 A |
| Current - Saturation (Isat) | 5.4A | 5.1A | 5.8A |
| Shielding | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 20mOhm Max | 20.5mOhm Max | 16mOhm Max |
| Q @ Freq | - | - | - |
| Frequency - Self Resonant | - | - | - |
| Ratings | - | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Nonstandard | Nonstandard | Nonstandard |
| Supplier Device Package | - | - | - |
| Size / Dimension | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.079" L x 0.063" W (2.00mm x 1.60mm) |
| Height - Seated (Max) | 0.047" (1.20mm) | 0.039" (1.00mm) | 0.047" (1.20mm) |
