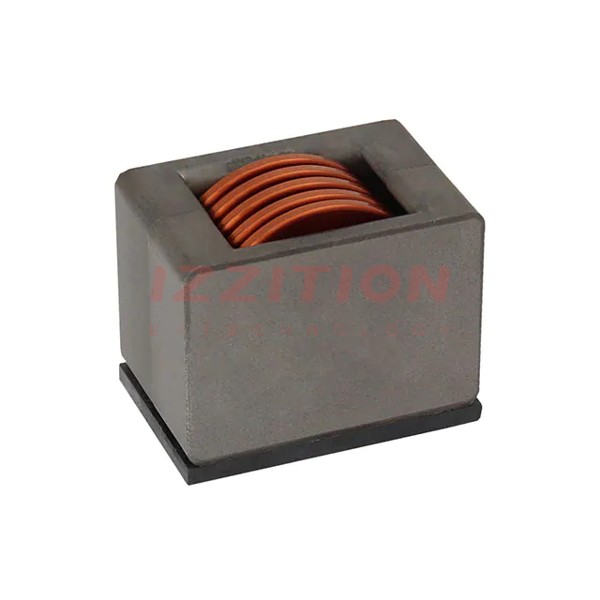

| Part Number | IHDM1107BBEV6R2M30 | IHDM1107BBEV8R2M30 |
|---|---|---|
| Manufacturer | Vishay Dale | Vishay Dale |
| Product Status | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Iron Powder | Iron Powder |
| Inductance | 6.2 µH | 8.2 µH |
| Tolerance | ±20% | ±20% |
| Current Rating (Amps) | 56 A | 39 A |
| Current - Saturation (Isat) | 91A | 73A |
| Shielding | Unshielded | Unshielded |
| DC Resistance (DCR) | 1.3mOhm Max | 1.73mOhm Max |
| Q @ Freq | - | - |
| Frequency - Self Resonant | 25MHz | 22MHz |
| Ratings | - | - |
| Operating Temperature | -55°C ~ 180°C | -55°C ~ 180°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 1.055" L x 0.705" W (26.80mm x 17.90mm) | 1.055" L x 0.705" W (26.80mm x 17.90mm) |
| Height - Seated (Max) | 0.882" (22.40mm) | 0.882" (22.40mm) |
