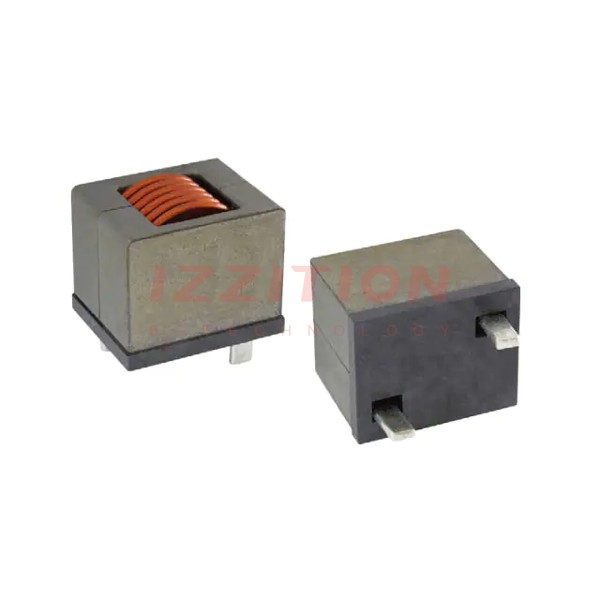

| Part Number | IHDM1008BCEV4R3M20 | IHDM1008BCEV1R3M20 |
|---|---|---|
| Manufacturer | Vishay Dale | Vishay Dale |
| Product Status | Active | Active |
| Type | Wirewound | Drum Core, Wirewound |
| Material - Core | Iron Powder | Iron Powder |
| Inductance | 4.3 µH | 1.3 µH |
| Tolerance | ±20% | ±20% |
| Current Rating (Amps) | 51 A | 84 A |
| Current - Saturation (Isat) | 142A | 259A |
| Shielding | Unshielded | Unshielded |
| DC Resistance (DCR) | 1.15mOhm Max | 0.48mOhm Max |
| Q @ Freq | - | - |
| Frequency - Self Resonant | 37MHz | 95MHz |
| Ratings | - | - |
| Operating Temperature | -40°C ~ 180°C | -40°C ~ 180°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | Vertical, 2 PC Pin | Vertical, 2 PC Pin |
| Supplier Device Package | Vertical, 2 PC Pin | Vertical, 2 PC Pin |
| Size / Dimension | 1.005" L x 0.816" W (25.53mm x 20.73mm) | 1.005" L x 0.816" W (25.53mm x 20.73mm) |
| Height - Seated (Max) | 0.896" (22.75mm) | 0.896" (22.75mm) |
