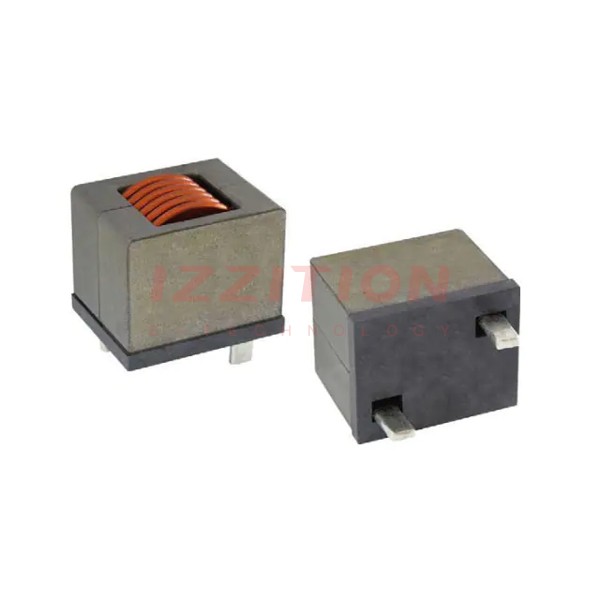

| Part Number | IHDM1008BCEV2R2M3A | IHDM1008BCEV1R2M3A |
|---|---|---|
| Manufacturer | Vishay Dale | Vishay Dale |
| Product Status | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Iron Powder | Iron Powder |
| Inductance | 2.2 µH | 1.2 µH |
| Tolerance | ±20% | ±20% |
| Current Rating (Amps) | 70 A | 80 A |
| Current - Saturation (Isat) | 110A | 150A |
| Shielding | Unshielded | Unshielded |
| DC Resistance (DCR) | 0.4mOhm Max | 0.3mOhm Max |
| Q @ Freq | - | - |
| Frequency - Self Resonant | 45MHz | 90MHz |
| Ratings | - | - |
| Operating Temperature | -40°C ~ 180°C | -40°C ~ 180°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 1.005" L x 0.816" W (25.53mm x 20.73mm) | 1.005" L x 0.816" W (25.53mm x 20.73mm) |
| Height - Seated (Max) | 0.896" (22.75mm) | 0.896" (22.75mm) |
