IHDM1008BCEV2R2M20
  • Share:

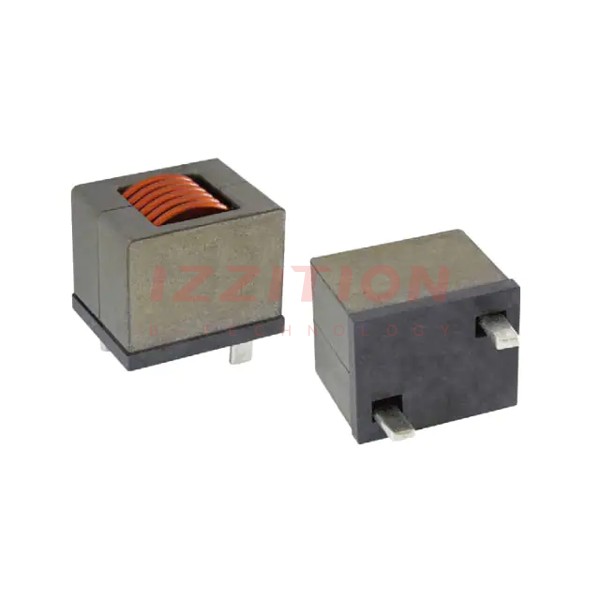

Vishay Dale IHDM1008BCEV2R2M20

Manufacturer No:
IHDM1008BCEV2R2M20
Manufacturer:
Vishay Dale
Package:
Tray
Datasheet:
IHDM1008BCEV2R2M20 Datasheet
ECAD Model:
-
Description:
HIGH CURRENT THROUGH-HOLE INDUCT
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Type:Drum Core, Wirewound
Material - Core:Iron Powder
Inductance:2.2 µH
Tolerance:±20%
Current Rating (Amps):63 A
Current - Saturation (Isat):204A
Shielding:Unshielded
DC Resistance (DCR):0.7mOhm Max
Q @ Freq:-
Frequency - Self Resonant:69MHz
Ratings:-
Operating Temperature:-40°C ~ 180°C
Inductance Frequency - Test:100 kHz
Features:-
Mounting Type:Through Hole
Package / Case:Vertical, 2 PC Pin
Supplier Device Package:Vertical, 2 PC Pin
Size / Dimension:1.005" L x 0.816" W (25.53mm x 20.73mm)
Height - Seated (Max):0.896" (22.75mm)
0 Remaining View Similar

In Stock

$12.19
15

Please send RFQ , we will respond immediately.
