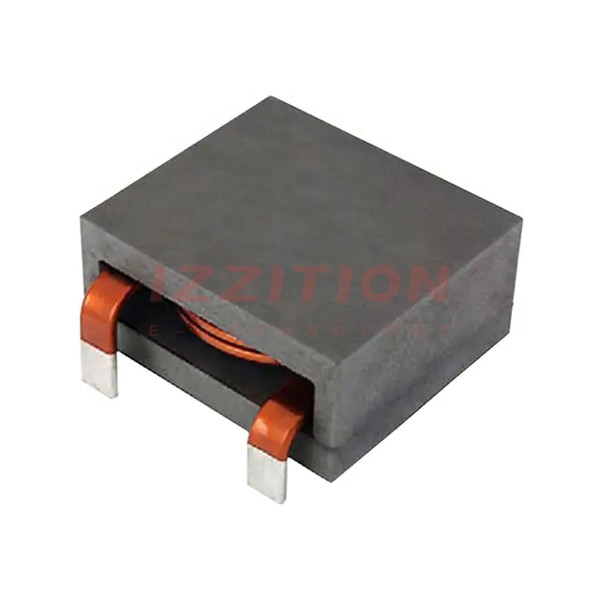

| Part Number | IHDF1300AEEH5R0K1A | IHDF1300AEEH1R0K1A |
|---|---|---|
| Manufacturer | Vishay Dale | Vishay Dale |
| Product Status | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite |
| Inductance | 5 µH | 1 µH |
| Tolerance | ±10% | ±10% |
| Current Rating (Amps) | 59 A | 72 A |
| Current - Saturation (Isat) | 78A | 230A |
| Shielding | Unshielded | Unshielded |
| DC Resistance (DCR) | 1.11mOhm Max | 0.79mOhm Max |
| Q @ Freq | - | - |
| Frequency - Self Resonant | 15MHz | 39MHz |
| Ratings | AEC-Q200 | AEC-Q200 |
| Operating Temperature | -55°C ~ 155°C | -55°C ~ 155°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 1.299" L x 1.173" W (33.00mm x 29.80mm) | 1.299" L x 1.173" W (33.00mm x 29.80mm) |
| Height - Seated (Max) | 0.606" (15.40mm) | 0.606" (15.40mm) |
