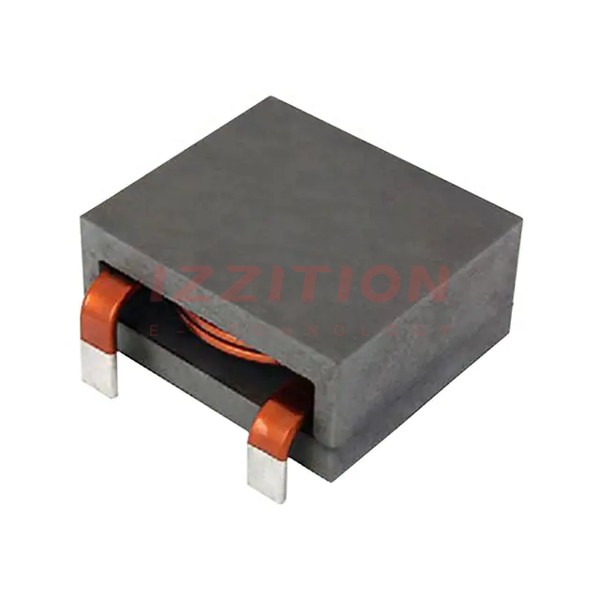

| Part Number | IHDF1300AEEH3R3K1A | IHDF1300AEEH3R3K10 |
|---|---|---|
| Manufacturer | Vishay Dale | Vishay Dale |
| Product Status | Active | Active |
| Type | Drum Core, Wirewound | - |
| Material - Core | Ferrite | Ferrite |
| Inductance | 3.3 µH | 3.3 µH |
| Tolerance | ±10% | ±10% |
| Current Rating (Amps) | 59 A | 59 A |
| Current - Saturation (Isat) | 112A | 112A |
| Shielding | Unshielded | Unshielded |
| DC Resistance (DCR) | 1.11mOhm Max | 1.11mOhm Max |
| Q @ Freq | - | - |
| Frequency - Self Resonant | 18MHz | 18MHz |
| Ratings | AEC-Q200 | - |
| Operating Temperature | -55°C ~ 155°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | Nonstandard | Nonstandard |
| Supplier Device Package | - | - |
| Size / Dimension | 1.299" L x 1.173" W (33.00mm x 29.80mm) | 1.299" L x 1.299" W (33.00mm x 33.00mm) |
| Height - Seated (Max) | 0.606" (15.40mm) | 0.606" (15.40mm) |
