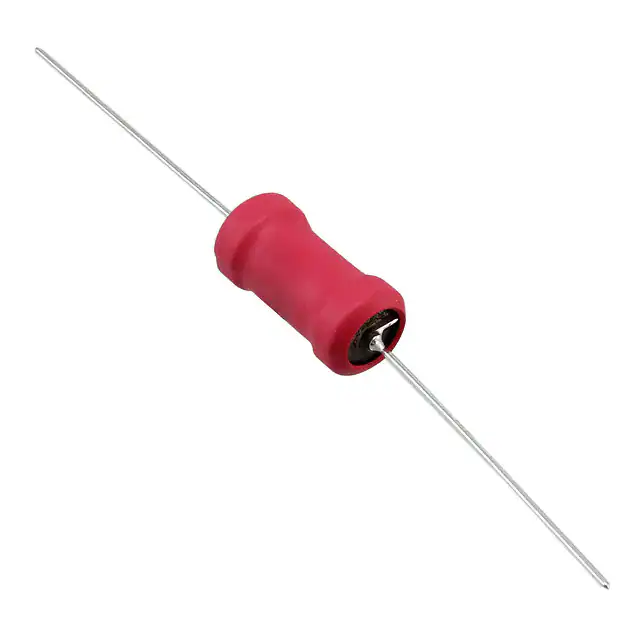

| Part Number | IHD3EB6R8L | IHD1EB6R8L |
|---|---|---|
| Manufacturer | Vishay Dale | Vishay Dale |
| Product Status | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite |
| Inductance | 6.8 µH | 6.8 µH |
| Tolerance | ±15% | ±15% |
| Current Rating (Amps) | 4 A | 3.1 A |
| Current - Saturation (Isat) | 6.3A | 2.7A |
| Shielding | Unshielded | Unshielded |
| DC Resistance (DCR) | 11mOhm Max | 26mOhm Max |
| Q @ Freq | - | - |
| Frequency - Self Resonant | - | - |
| Ratings | - | - |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 1 kHz | 1 kHz |
| Features | - | - |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | Axial | Axial |
| Supplier Device Package | - | - |
| Size / Dimension | 0.460" Dia x 0.900" L (11.68mm x 22.86mm) | 0.270" Dia x 0.700" L (6.86mm x 17.78mm) |
| Height - Seated (Max) | - | - |
